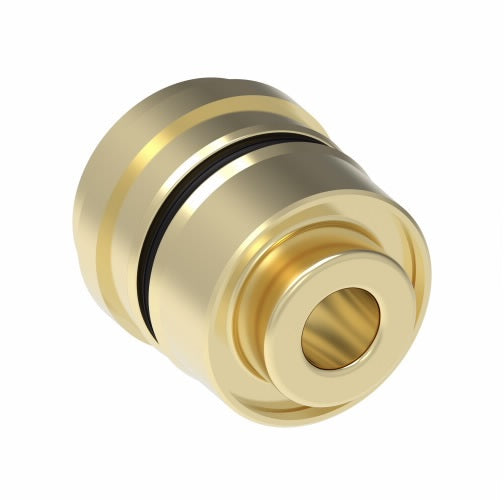

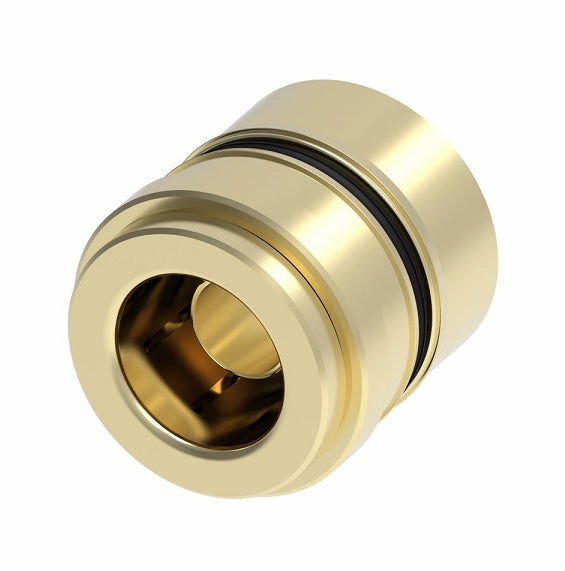

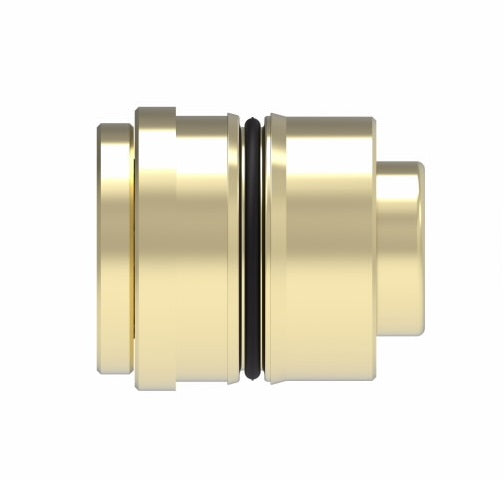

1861X4 by Danfoss | Quick Connect Air Brake Adapter | Encapsulated Cartridge | 1/4" Tube OD | Brass

1861X4 by Danfoss | Quick Connect Air Brake Adapter | Encapsulated Cartridge | 1/4" Tube OD | Brass

Name: 1861X4 by Danfoss | Quick Connect Air Brake Adapter | Encapsulated Cartridge | 1/4" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: 1861X4 Danfoss
Price: 15.54 USD
Availability: InStock

$15.54 - $15.54

$15.54

$15.54 - $15.54

$15.54

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Encapsulated Cartridge

Specifications for Variant SKU: 1861X4 Danfoss
Material(s):	Brass
Seal Material(s):	Ethylene Propylene
Compatible with the following Series:	3270 Series \| 4247 Series \| 4245 Series

Applications:
Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. Not for fuel, water or oil.
Advantages:
Easy, fast assembly. One piece fitting. Reusable. Field Serviceable. Moderate vibration resistance.
Used With:
SAE J844 Type A and B. Danfoss / Eaton Air Brake Tubing.
Material:
CA360 Brass (Body & Collet). EP (Ethylene Propylene) - O-Ring.
Pressure:
Vacuum to 150 PSI
Temperature Range:
-40°F to +200°F (-40°C to +93°C)
Conformance:
Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Quick Connect Air Brake Fitting Assembly & Disassembly Guide.PDF


Brass Part Number	Tube O.D.	Diameter F	L	D1	D	H
1861X4	1/4"	0.56"	0.65"	0.13"	0.263"	0.17"
1861X6	3/8"	0.69"	0.81"	0.22"	0.388"	0.19"
1861X8	1/2"	0.81"	0.83"	0.34"	0.513"	0.19"
