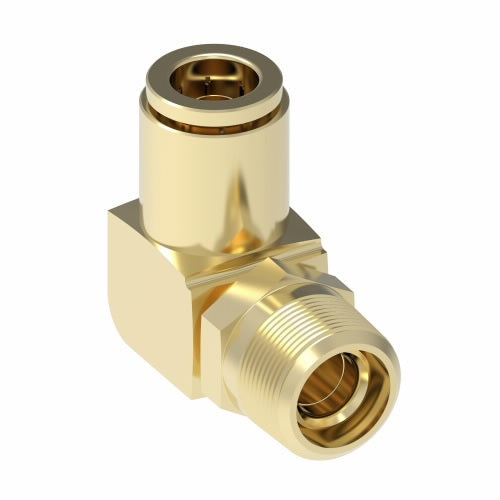

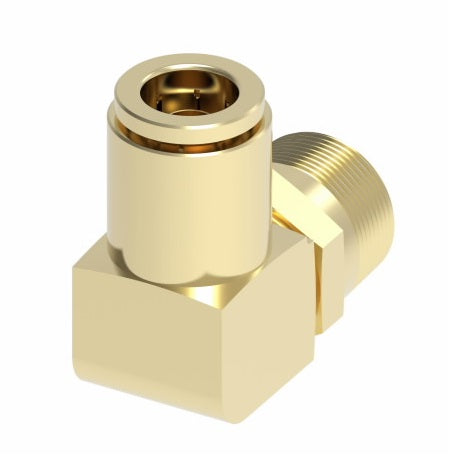

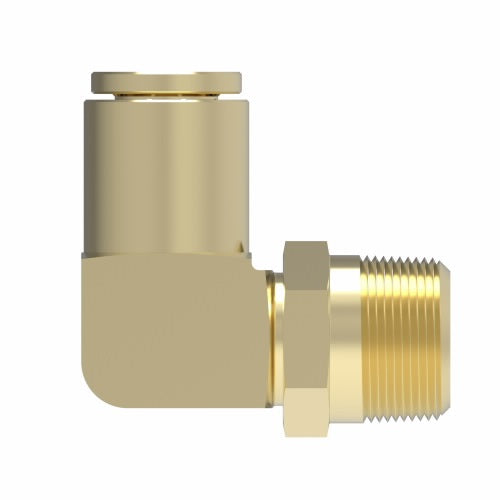

1869X6X6S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 90° Elbow Swivel | 3/8" Tube OD x 3/8" Male NPTF | Brass
1869X6X6S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 90° Elbow Swivel | 3/8" Tube OD x 3/8" Male NPTF | Brass
1869X6X6S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 90° Elbow Swivel | 3/8" Tube OD x 3/8" Male NPTF | Brass
1869X6X6S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 90° Elbow Swivel | 3/8" Tube OD x 3/8" Male NPTF | Brass

1869X6X6S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 90° Elbow Swivel | 3/8" Tube OD x 3/8" Male NPTF | Brass

$23.43 - $23.43
$23.43
$23.43 - $23.43
$23.43

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Connector Swivel
Specifications for Variant SKU: 1869X6X6S Danfoss
Shape (Orientation): 90 Degree
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA02DD
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Male Pipe Thread D1 M N Hex
C
1869X4S 1/4" 1/8" 0.14" 0.89" 0.88" 7/16"
1869X4X4S 1/4" 1/4" 0.23" 0.99" 1.06" 9/16"
1869X4X6S 1/4" 3/8" 0.30" 0.99" 1.06" 11/16"
1869X6X2S 3/8" 1/8" 0.74" 1.03" 0.97" 7/16"
1869X6S 3/8" 1/4" 0.23" 1.12" 1.14" 9/16"
1869X6X6S 3/8" 3/8" 0.30" 1.12" 1.15" 11/16"
1869X6X8S 3/8" 1/2" 0.42" 1.18" 1.40" 7/8"
1869X8X4S 1/2" 1/4" 0.22" 1.08" 1.20" 9/16"
1869X8S 1/2" 3/8" 0.30" 1.13" 1.27" 11/16"
1869X8X8S 1/2" 1/2" 0.42" 1.25" 1.47" 7/8"
1869X10S 5/8" 1/2" 0.42" 1.38" 1.54" 7/8"
