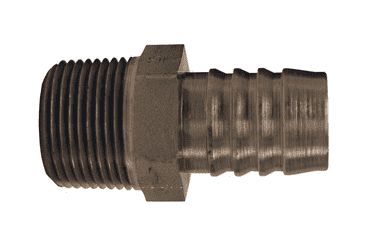

188-12 Dixon Plated Steel Hydraulic Suction and Return Line Hose Stem - 3/4" Hose ID x 3/4"-14 Male NPTF

188-12 Dixon Valve Plated Steel Hydraulic Suction and Return Line Hose Stem - 3/4" Hose ID x 3/4"-14 Male NPTF

Save $8.93 Save $8.93
$22.33
$22.33 - $22.33
$22.33
$13.40
$13.40 - $13.40
$13.40

Hydraulic Suction and Return Line Hose Fittings - Stems - Male NPTF - Plated Steel
Specifications for Variant SKU: 188-12 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male NPTF
Material(s): Plated Steel
Features:
  • Designed and machined for hydraulic suction line applications using SAE100R4 hydraulic hose.
  • Barbs provide easy assembly and maximum gripping action.
  • Note: Return line clamps must be used with these fittings.
Part Number Hose ID NPTF Thread Weight (Lbs.)
188-12 3/4" 3/4"-14 0.2000
188-16 1" 1"-11-1/2 0.3700
188-20 1-1/4" 1-1/4"-11-1/2 0.5900
188-24 1-1/2" 1-1/2"-11-1/2 0.8500
188-32 2" 2"-11-1/2 1.3100
