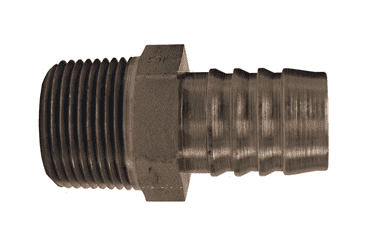

188-24 Dixon Plated Steel Hydraulic Suction and Return Line Hose Stem - 1-1/2" Hose ID x 1-1/2"-11-1/2 Male NPTF

188-24 Dixon Valve Plated Steel Hydraulic Suction and Return Line Hose Stem - 1-1/2" Hose ID x 1-1/2"-11-1/2 Male NPTF

Save $10.70 Save $10.70
$96.27
$96.27 - $96.27
$96.27
$85.57
$85.57 - $85.57
$85.57

Hydraulic Suction and Return Line Hose Fittings - Stems - Male NPTF - Plated Steel
Specifications for Variant SKU: 188-24 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Hose Barb, 1-1/2in Male NPTF
Material(s): Plated Steel
Features:
  • Designed and machined for hydraulic suction line applications using SAE100R4 hydraulic hose.
  • Barbs provide easy assembly and maximum gripping action.
  • Note: Return line clamps must be used with these fittings.
Part Number Hose ID NPTF Thread Weight (Lbs.)
188-12 3/4" 3/4"-14 0.2000
188-16 1" 1"-11-1/2 0.3700
188-20 1-1/4" 1-1/4"-11-1/2 0.5900
188-24 1-1/2" 1-1/2"-11-1/2 0.8500
188-32 2" 2"-11-1/2 1.3100
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
