Aeroquip® by Danfoss

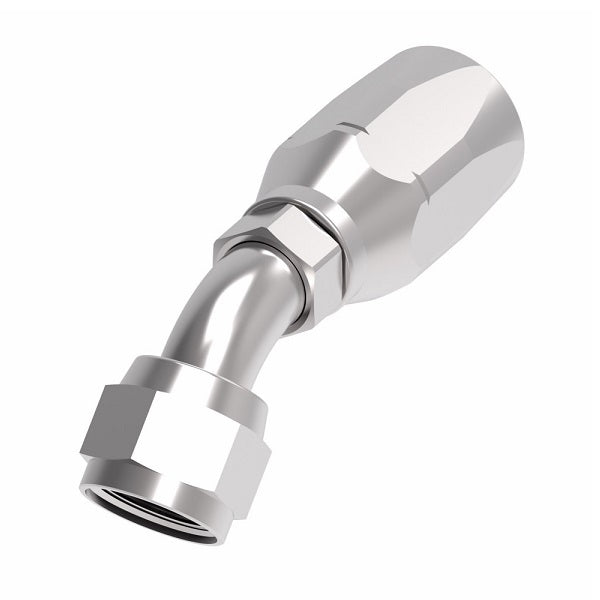

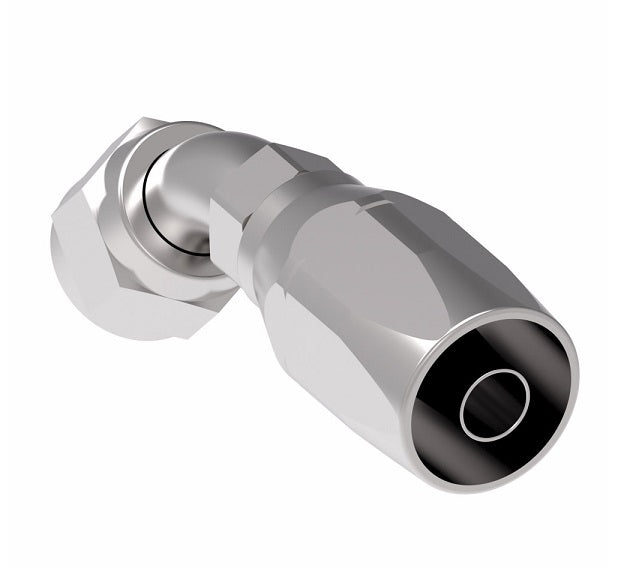

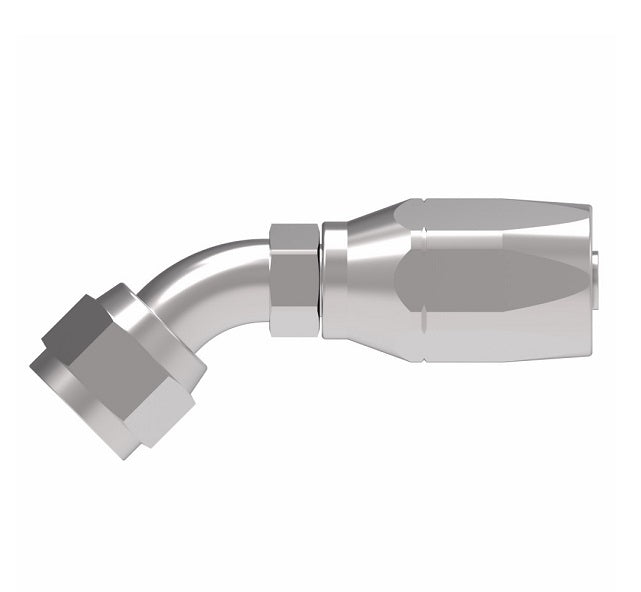

100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190287-12S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number		 Hose Size Thread A D EØ H
190287-4S -04 7/16-20 2.51" 1.28" 0.17" 0.33"
190287-8S -08 3/4-16 3.26" 1.75" 0.39" 0.55"
190287-10S -10 7/8-14 3.54" 1.99" 0.50" 0.64"
190287-12S -12 1-1/16-12 4.15" 2.28" 0.61" 0.78"
190287-16S -16 1-5/16-12 5.03" 2.97" 0.82" 1.07"
