Aeroquip® by Danfoss

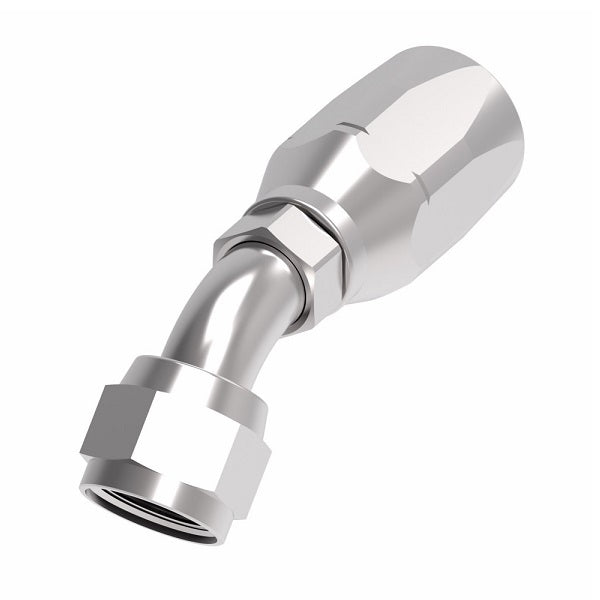

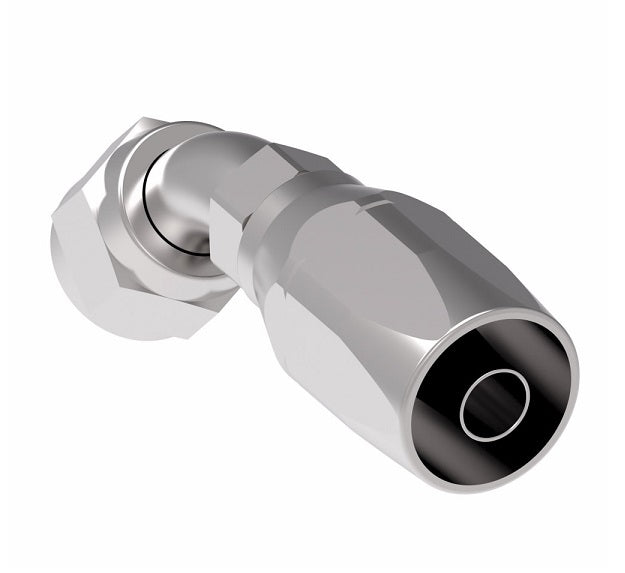

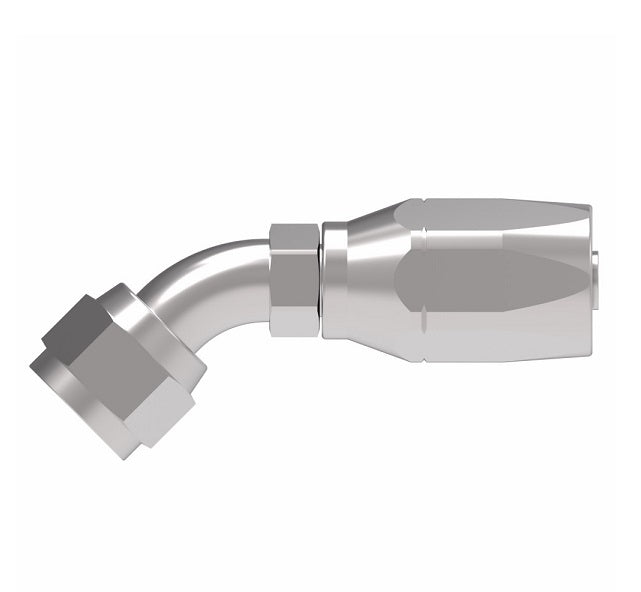

100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190287-10S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 5/8in Female JIC, 5/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number		 Hose Size Thread A D EØ H
190287-4S -04 7/16-20 2.51" 1.28" 0.17" 0.33"
190287-8S -08 3/4-16 3.26" 1.75" 0.39" 0.55"
190287-10S -10 7/8-14 3.54" 1.99" 0.50" 0.64"
190287-12S -12 1-1/16-12 4.15" 2.28" 0.61" 0.78"
190287-16S -16 1-5/16-12 5.03" 2.97" 0.82" 1.07"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
