190327-4S Aeroquip by Danfoss | Male SAE Inverted Flare Short Drop 90° Elbow Socketless Reusable Hose Fitting | -04 Male SAE Inverted Flare x -04 Push-On Hose Barb | Steel

190327-4S Aeroquip by Danfoss | Male SAE Inverted Flare Short Drop 90° Elbow Socketless Reusable Hose Fitting | -04 Male SAE Inverted Flare x -04 Push-On Hose Barb | Steel

Name: 190327-4S Aeroquip by Danfoss | Male SAE Inverted Flare Short Drop 90° Elbow Socketless Reusable Hose Fitting | -04 Male SAE Inverted Flare x -04 Push-On Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 190327-4S Danfoss
Price: 38.24 USD
Availability: InStock

$38.24 - $38.24

$38.24

$38.24 - $38.24

$38.24

Aeroquip® by Danfoss

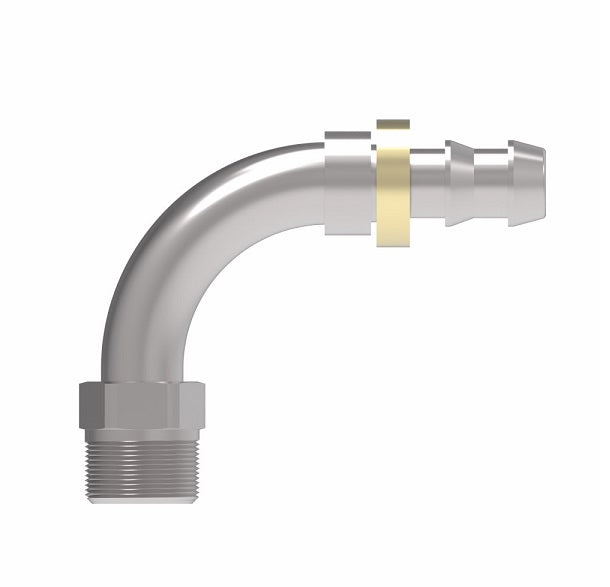

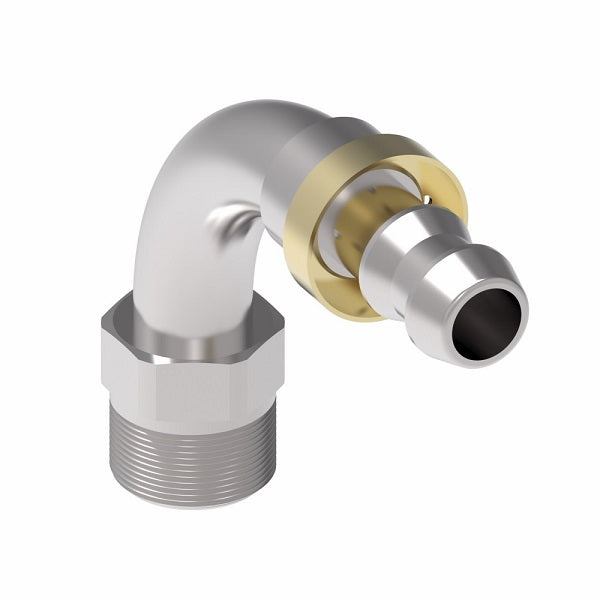

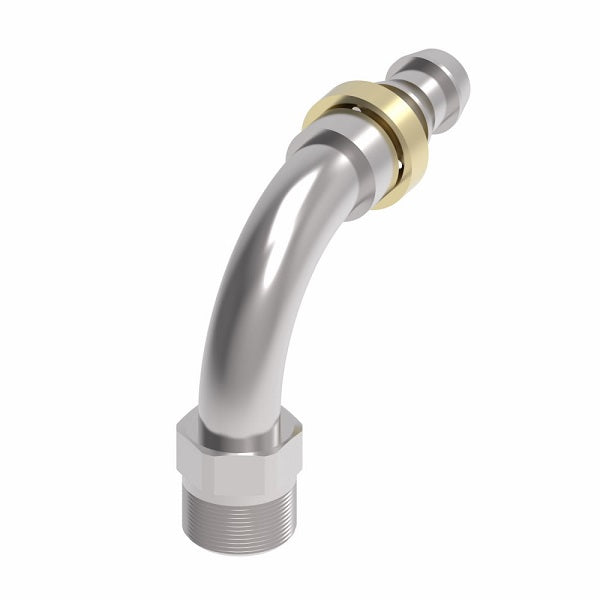

Socketless (Push-On Hose Barb) Reusable Hose Fitting - Male SAE Inverted Flare Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190327-4S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male Inverted Flare, 1/4in Push-On Hose Barb
Material(s):	Steel
Special Properties:	Short Drop
Compatible with the following Series:	2556 Series \| 2565 Series \| FC332 Series \| FC647 Series \| H201 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190327-4S	-04	7/16-24	2.08"	1.33"	0.17"	1.69"
190327-6S	-06	5/8-18	2.20"	1.33"	0.30"	1.73"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
