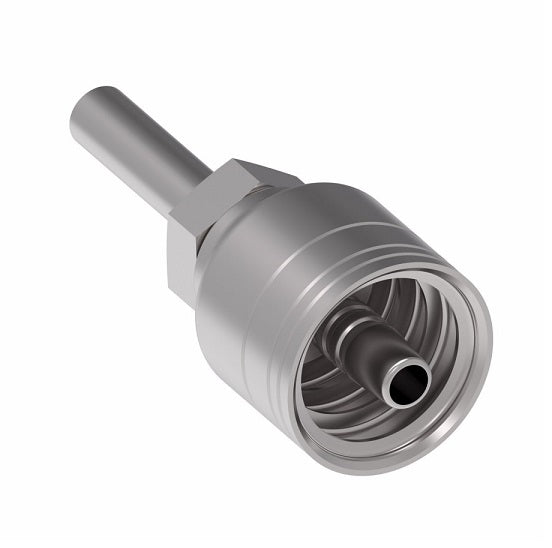

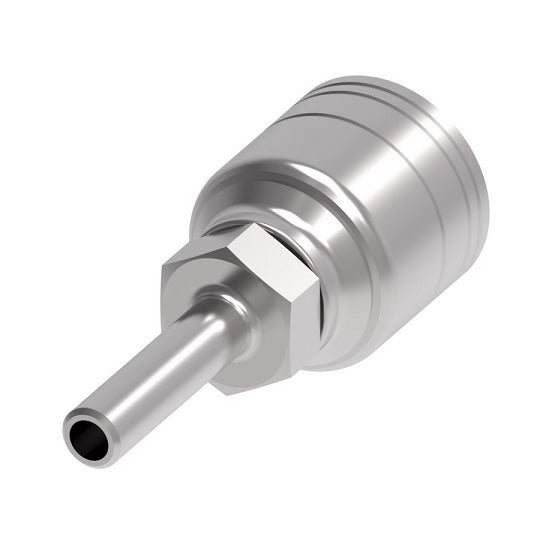

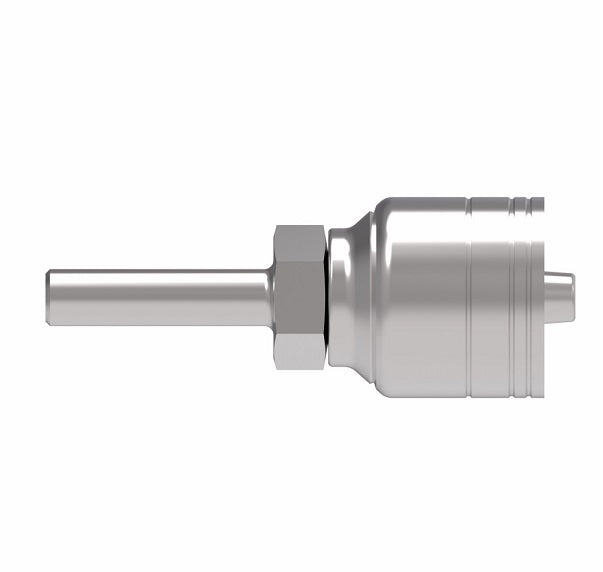

1A4TE4 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -04 Standpipe x -04 Hose Barb | Steel
1A4TE4 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -04 Standpipe x -04 Hose Barb | Steel
1A4TE4 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -04 Standpipe x -04 Hose Barb | Steel
1A4TE4 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -04 Standpipe x -04 Hose Barb | Steel

1A4TE4 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -04 Standpipe x -04 Hose Barb | Steel

$15.74 - $15.74
$15.74
$15.74 - $15.74
$15.74

Aeroquip® by Danfoss
TCC Crimp Fitting - Standpipe Straight Tube (TE) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A4TE4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Stub, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 3130 Series  |   3740 Series  |   3R80 Series  |   3E80 Series  |   2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series  |   EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Note:
  • TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Part Number Steel Tube OD Hose Dash
Size		 A Hose Cut-Off Factor
D		 E&Oslash Hex 2

 B
1A4TE4 1/4" -04 2.19" 1.40" 0.17" 9/16" 1.00"
1A6TE6 3/8" -06 2.35" 1.52" 0.26" 11/16" 1.00"
1A8TE8 1/2" -08 2.69" 1.70" 0.38" 13/16" 1.10"
1A10TE10 - -10 - - - - -
1A12TE12 3/4" -12 2.90" 1.84" 0.61" 1-1/8" 1.19"
1A16TE16 1" -16 3.43" 2.11" 0.81" 1-3/8" 1.32"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
