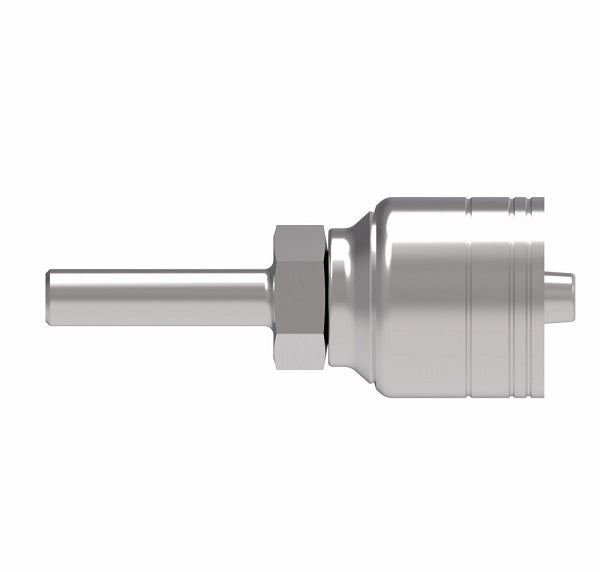

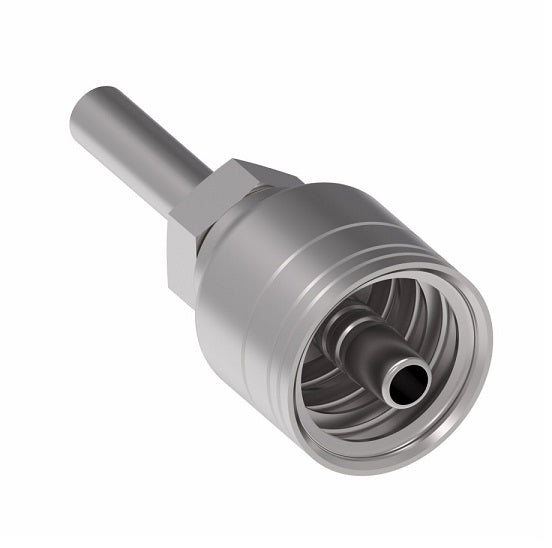

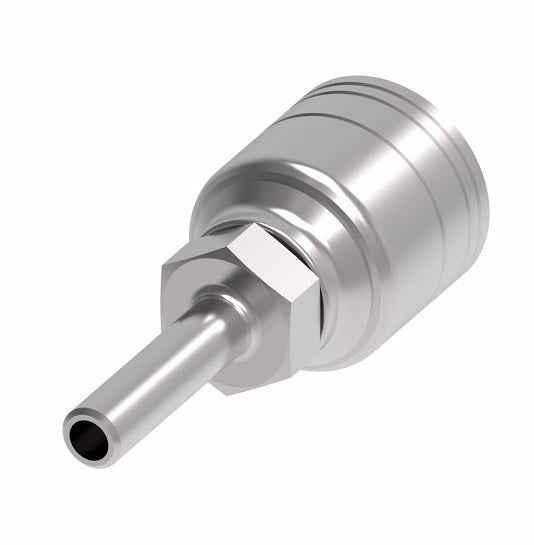

1A12TE12 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -12 Standpipe x -12 Hose Barb | Steel

1A12TE12 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -12 Standpipe x -12 Hose Barb | Steel

Name: 1A12TE12 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -12 Standpipe x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A12TE12 Danfoss
Price: 67.21 USD
Availability: InStock

$67.21 - $67.21

$67.21

$67.21 - $67.21

$67.21

Aeroquip® by Danfoss
TCC Crimp Fitting - Standpipe Straight Tube (TE) - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A12TE12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Tube Stub, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	3130 Series \| 3740 Series \| 3R80 Series \| 3E80 Series \| 2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Note:
TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Crimp Fitting Socket Data.PDF


Part Number Steel	Tube OD	Hose Dash Size	A	Hose Cut-Off Factor D	E&Oslash	Hex 2	B
1A4TE4	1/4"	-04	2.19"	1.40"	0.17"	9/16"	1.00"
1A6TE6	3/8"	-06	2.35"	1.52"	0.26"	11/16"	1.00"
1A8TE8	1/2"	-08	2.69"	1.70"	0.38"	13/16"	1.10"
1A10TE10	-	-10	-	-	-	-	-
1A12TE12	3/4"	-12	2.90"	1.84"	0.61"	1-1/8"	1.19"
1A16TE16	1"	-16	3.43"	2.11"	0.81"	1-3/8"	1.32"
