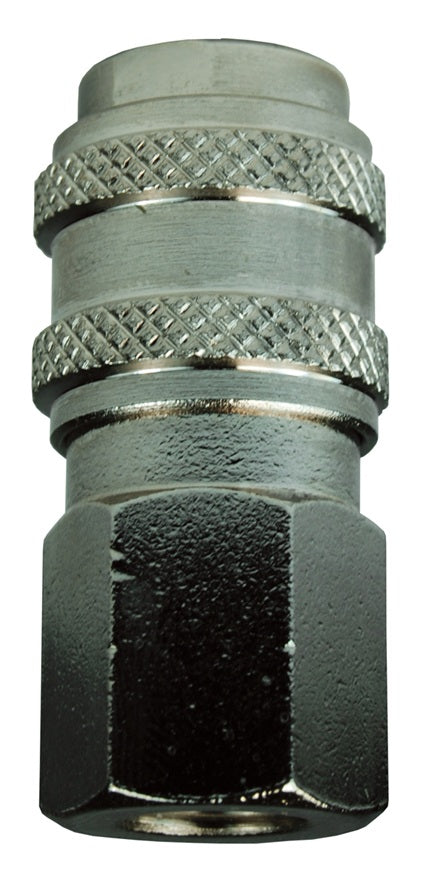

1BRF1-B-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Female NPT x 1/8" 21-Series Interchange Coupler | Socket | Nitrile Seal | Brass
1BRF1-B-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Female NPT x 1/8" 21-Series Interchange Coupler | Socket | Nitrile Seal | Brass
1BRF1-B-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Female NPT x 1/8" 21-Series Interchange Coupler | Socket | Nitrile Seal | Brass

1BRF1-B-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Female NPT x 1/8" 21-Series Interchange Coupler | Socket | Nitrile Seal | Brass

Save $0.54 Save $0.54
$8.10
$8.10 - $8.10
$8.10
$7.56
$7.56 - $7.56
$7.56

Dixon Valve & Coupling
Pneumatic Coupling: BR-Series 21-Series Interchange Coupler (Female Threads)
Specifications for Variant SKU: 1BRF1-B-7 Dixon
Series: BR-Series
Shape (Orientation): Straight
Ends Configuration: 1/8in Female BR-Series QD Interchange, 1/8in Female NPTF
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Rectus 21KA, Tomco Series SC, CEJN Series 223

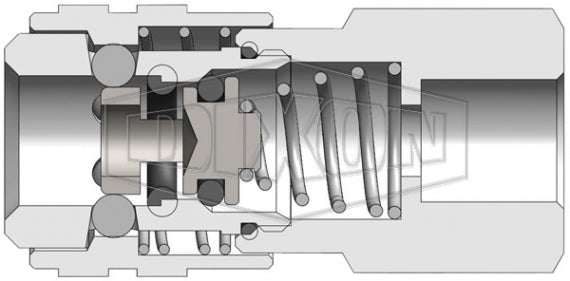

Construction:
  • Machined components are manufactured using solid brass bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Machined components are plated with chrome-over-nickel plating.
  • Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
BR-Series | 21-Series Interchange Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
1BRF1-B-7 Socket/Female 1/8" 1/8" - 27 Female NPT Brass 1.55"
(39.4mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
1BRBF1-B-7 Socket/Female 1/8" 1/8" - 28 Female BSPP Brass 1.55"
(39.4mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
1BRF2-B-7 Socket/Female 1/8" 1/4" - 18 Female NPT Brass 1.77"
(45.0mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
1BRBF2-B-7 Socket/Female 1/8" 1/4" - 19 Female BSPP Brass 1.77"
(45.0mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
BR-Series | 21-Series Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
BR1F1-B-E-7 Plug/Female 1/8" 1/8" - 27 Female NPT Brass 1.14"
(29.0mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
BR1BF1-B-E-7 Plug/Female 1/8" 1/8" - 28 Female BSPP Brass 1.14"
(29.0mm)		 0.65"
(16.5mm)		 9/16" 300 PSI 7000 PSI
BR1F2-B-E-7 Plug/Female 1/8" 1/4" - 18 Female NPT Brass 1.33"
(33.8mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
BR1BF2-B-E-7 Plug/Female 1/8" 1/4" - 19 Female BSPP Brass 1.33"
(33.8mm)		 0.72"
(18.3mm)		 5/8" 300 PSI 7000 PSI
