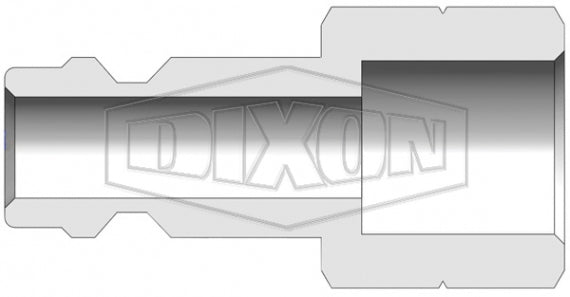

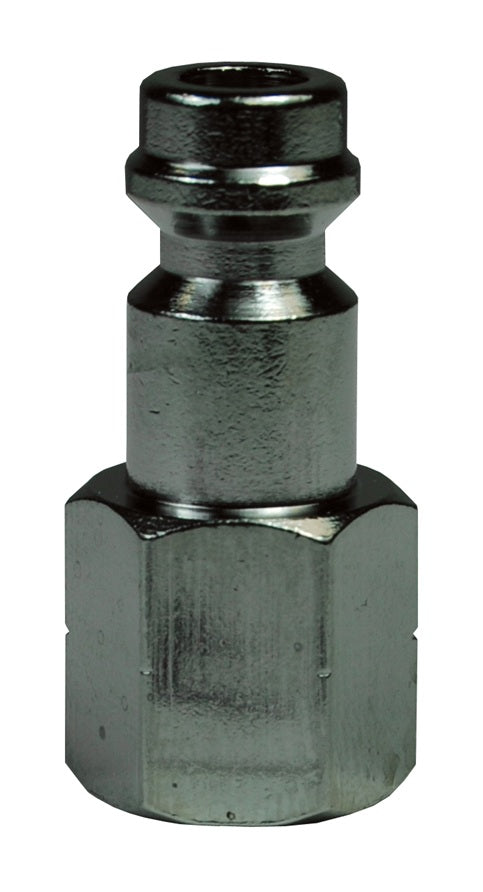

BR1BF1-B-E-7 by Dixon Valve | Pneumatic Quick Disconnect Coupling | BR-Series | 1/8" Female BSPP x 1/8" 21-Series Interchange | Plug | Brass

Save $1.45

$3.62

$3.62 - $3.62

$3.62

$2.17

$2.17 - $2.17

$2.17

Dixon Valve & Coupling
Pneumatic Coupling: BR-Series 21-Series Interchange Plug (Female Threads)

Specifications for Variant SKU: BR1BF1-B-E-7 Dixon
Series:	BR-Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male BR-Series QD Interchange, 1/8in Female BSPP
Material(s):	Brass

Compatibility & Interchange:	Rectus 21KA, Tomco Series SC, CEJN Series 223
Construction:	Machined components are manufactured using solid brass bar stock. Machined components are plated with chrome-over-nickel plating.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

BR-Series \| 21-Series Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
BR1F1-B-E-7	Plug/Female	1/8"	1/8" - 27 Female NPT	Brass	1.14" (29.0mm)	0.65" (16.5mm)	9/16"	300 PSI	7000 PSI
BR1BF1-B-E-7	Plug/Female	1/8"	1/8" - 28 Female BSPP	Brass	1.14" (29.0mm)	0.65" (16.5mm)	9/16"	300 PSI	7000 PSI
BR1F2-B-E-7	Plug/Female	1/8"	1/4" - 18 Female NPT	Brass	1.33" (33.8mm)	0.72" (18.3mm)	5/8"	300 PSI	7000 PSI
BR1BF2-B-E-7	Plug/Female	1/8"	1/4" - 19 Female BSPP	Brass	1.33" (33.8mm)	0.72" (18.3mm)	5/8"	300 PSI	7000 PSI

BR-Series \| 21-Series Interchange Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
1BRF1-B-7	Socket/Female	1/8"	1/8" - 27 Female NPT	Brass	1.55" (39.4mm)	0.65" (16.5mm)	9/16"	300 PSI	7000 PSI
1BRBF1-B-7	Socket/Female	1/8"	1/8" - 28 Female BSPP	Brass	1.55" (39.4mm)	0.65" (16.5mm)	9/16"	300 PSI	7000 PSI
1BRF2-B-7	Socket/Female	1/8"	1/4" - 18 Female NPT	Brass	1.77" (45.0mm)	0.72" (18.3mm)	5/8"	300 PSI	7000 PSI
1BRBF2-B-7	Socket/Female	1/8"	1/4" - 19 Female BSPP	Brass	1.77" (45.0mm)	0.72" (18.3mm)	5/8"	300 PSI	7000 PSI
