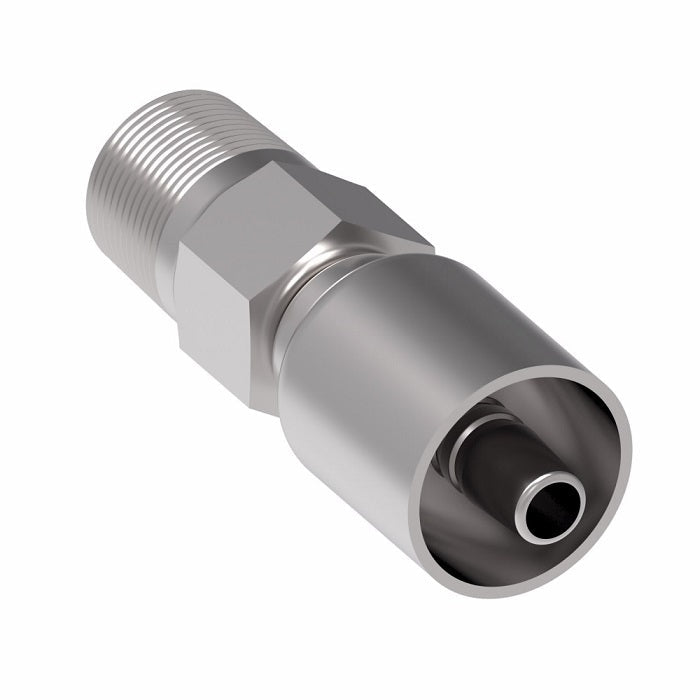

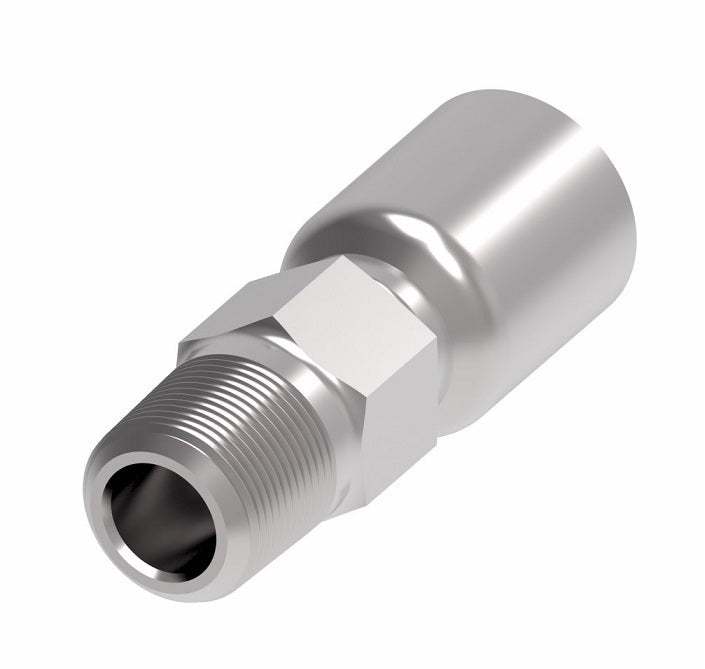

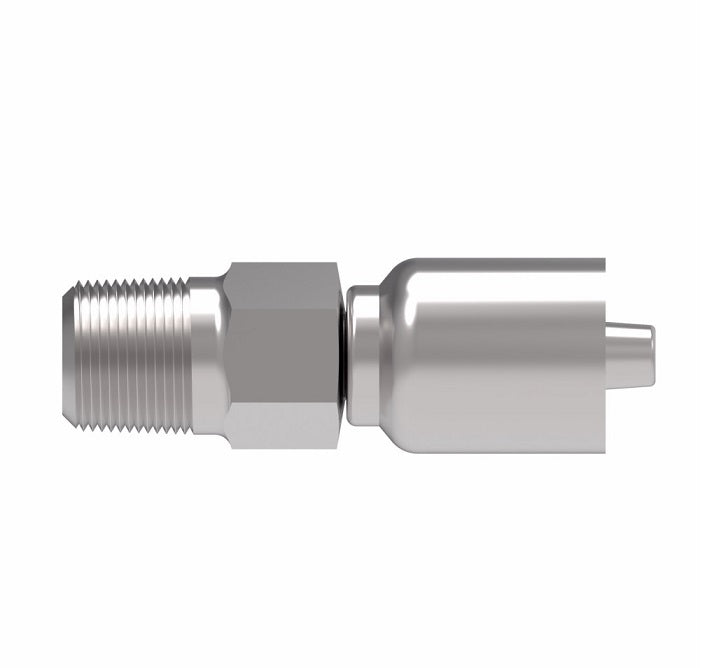

1GA12MP12 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -12 Male Pipe x -12 Hose Barb | Steel
1GA12MP12 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -12 Male Pipe x -12 Hose Barb | Steel
1GA12MP12 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -12 Male Pipe x -12 Hose Barb | Steel
1GA12MP12 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -12 Male Pipe x -12 Hose Barb | Steel

1GA12MP12 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -12 Male Pipe x -12 Hose Barb | Steel

$15.77 - $15.77
$15.77
$15.77 - $15.77
$15.77

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Male Pipe Crimp Fitting (MP) - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1GA12MP12 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 2583 Series  |   2661 Series  |   FC466 Series  |   FC498 Series  |   FC598 Series  |   FC619 Series  |   FC699 Series
Technical Info:
Steel
Part Number 		Stainless Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 2
1GA4MP4 - 1/4-18 -04 2.06" 1.14" 0.17" 9/16"
1GA6MP6 - 3/8-18 -06 2.17" 1.27" 0.26" 11/16"
1GA6MP8 - 3/8-18 -08 2.39" 1.32" 0.38" 13/16"
1GA8MP8 - 1/2-14 -08 2.80" 1.60" 0.38" 7/8"
1GA8MP10 - 1/2-14 -10 2.61" 1.58" 0.50" 15/16"
1GA8MP12 - 1/2-14 -12 2.78" 1.60" 0.56" 1-1/8"
1GA12MP10 - 3/4-14 -10 2.43" 1.40" 0.50" 1-1/16"
1GA12MP12 - 3/4-14 -12 2.84" 1.65" 0.61" 1-1/8"
1GA12MP16 - 3/4-14 -16 3.02" 1.67" 0.76" 1-3/8"
1GA16MP12 - 1-11-1/2 -12 2.80" 1.61" 0.61" 1-3/8"
1GA16MP16 - 1-11-1/2 -16 3.22" 1.86" 0.82" 1-3/8"
1GA20MP20 - 1-1/4 - 11-1/2 -20 3.52" 1.79" 1.05" 1-13/16"
1GA24MP24 - 1-1/2 - 11-1/2 -24 4.18" 2.36" 1.26" 2"
1GA32MP32 - 2-11-1/2 -32 4.59" 2.61" 1.75" 2-1/2"
