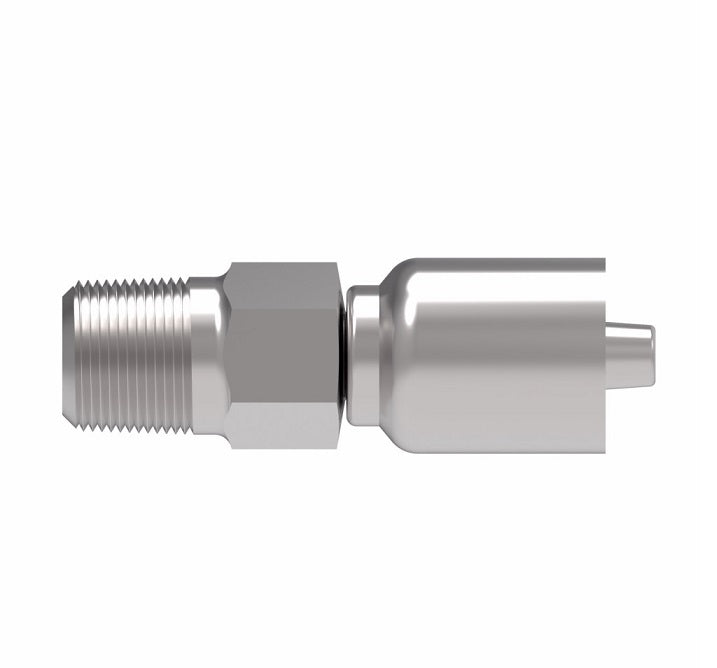

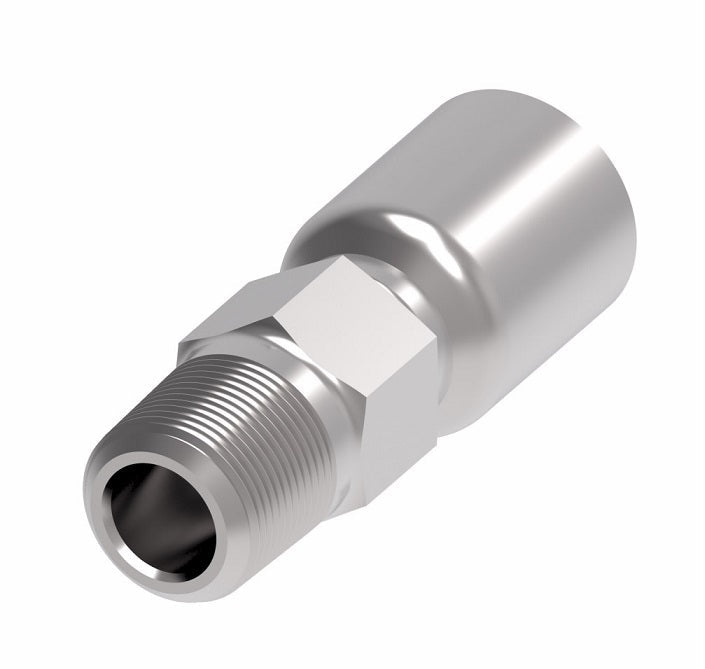

1GA16MP16 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -16 Male Pipe x -16 Hose Barb | Steel

1GA16MP16 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -16 Male Pipe x -16 Hose Barb | Steel | Pack of 10

$226.97 - $226.97

$226.97

$226.97 - $226.97

$226.97

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Male Pipe Crimp Fitting (MP) - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 1GA16MP16 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1in Male NPT, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2583 Series \| 2661 Series \| FC466 Series \| FC498 Series \| FC598 Series \| FC619 Series \| FC699 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Stainless Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
1GA4MP4	-	1/4-18	-04	2.06"	1.14"	0.17"	9/16"
1GA6MP6	-	3/8-18	-06	2.17"	1.27"	0.26"	11/16"
1GA6MP8	-	3/8-18	-08	2.39"	1.32"	0.38"	13/16"
1GA8MP8	-	1/2-14	-08	2.80"	1.60"	0.38"	7/8"
1GA8MP10	-	1/2-14	-10	2.61"	1.58"	0.50"	15/16"
1GA8MP12	-	1/2-14	-12	2.78"	1.60"	0.56"	1-1/8"
1GA12MP10	-	3/4-14	-10	2.43"	1.40"	0.50"	1-1/16"
1GA12MP12	-	3/4-14	-12	2.84"	1.65"	0.61"	1-1/8"
1GA12MP16	-	3/4-14	-16	3.02"	1.67"	0.76"	1-3/8"
1GA16MP12	-	1-11-1/2	-12	2.80"	1.61"	0.61"	1-3/8"
1GA16MP16	-	1-11-1/2	-16	3.22"	1.86"	0.82"	1-3/8"
1GA20MP20	-	1-1/4 - 11-1/2	-20	3.52"	1.79"	1.05"	1-13/16"
1GA24MP24	-	1-1/2 - 11-1/2	-24	4.18"	2.36"	1.26"	2"
1GA32MP32	-	2-11-1/2	-32	4.59"	2.61"	1.75"	2-1/2"
