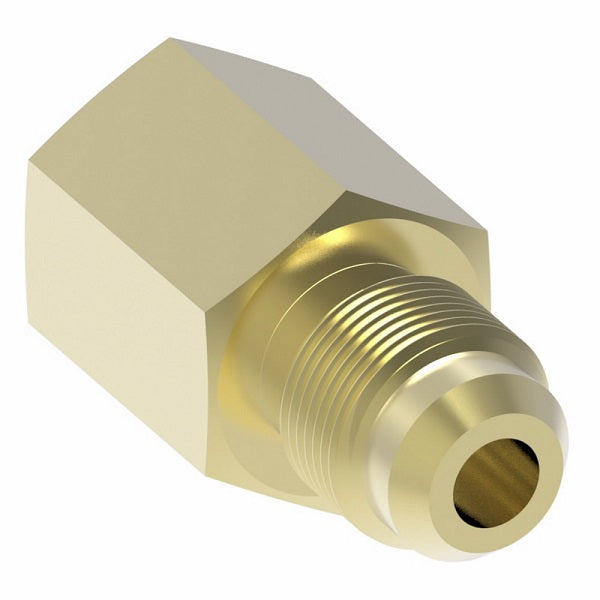

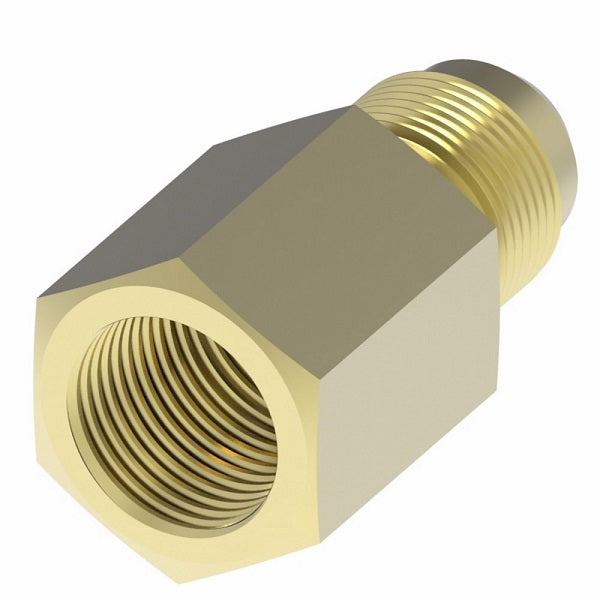

2001-4-5B Aeroquip by Danfoss | Internal Pipe/45° Flare Adapter | -04 Female NPTF x -05 Male SAE 45° Flare | Brass
2001-4-5B Aeroquip by Danfoss | Internal Pipe/45° Flare Adapter | -04 Female NPTF x -05 Male SAE 45° Flare | Brass
2001-4-5B Aeroquip by Danfoss | Internal Pipe/45° Flare Adapter | -04 Female NPTF x -05 Male SAE 45° Flare | Brass
2001-4-5B Aeroquip by Danfoss | Internal Pipe/45° Flare Adapter | -04 Female NPTF x -05 Male SAE 45° Flare | Brass

2001-4-5B Aeroquip by Danfoss | Internal Pipe/45° Flare Adapter | -04 Female NPTF x -05 Male SAE 45° Flare | Brass

$23.26 - $23.26
$23.26
$23.26 - $23.26
$23.26

Aeroquip® by Danfoss
Internal Pipe/45° Flare Adapter
Female NPTF x Male SAE 45° Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2001-4-5B Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPTF, 5/16in Male SAE 45 Flare
Material(s): Brass
Specifications:
  • Ref. SAE 010103
Part Number
Brass		 Tube O.D. Thread P Thread T A
2001-2-4B 0.25" 1/8-27 7/16-20 1.06"
2001-4-5B 0.31" 1/4-18 1/2-20 1.25"
2001-6-6B 0.38" 3/8-18 5/8-18 1.31"
2001-6-10B 0.63" 3/8-18 7/8-14 1.56"
2001-8-8B 0.50" 1/2-14 3/4-16 1.62"
2001-8-10B 0.63" 1/2-14 7/8-14 1.81"
2001-12-10B 0.63" 3/4-14 7/8-14 1.81"
2001-12-12B 0.75" 3/4-14 1-1/16-14 1.94"
i

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
