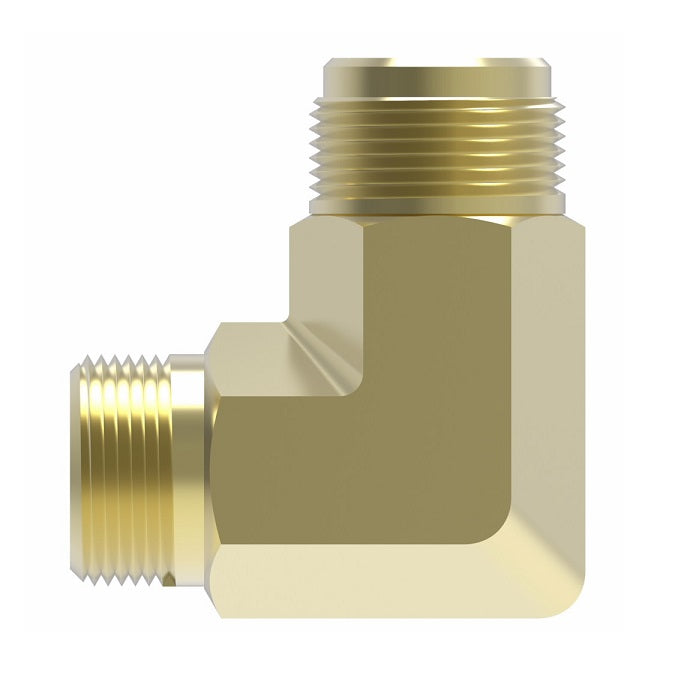

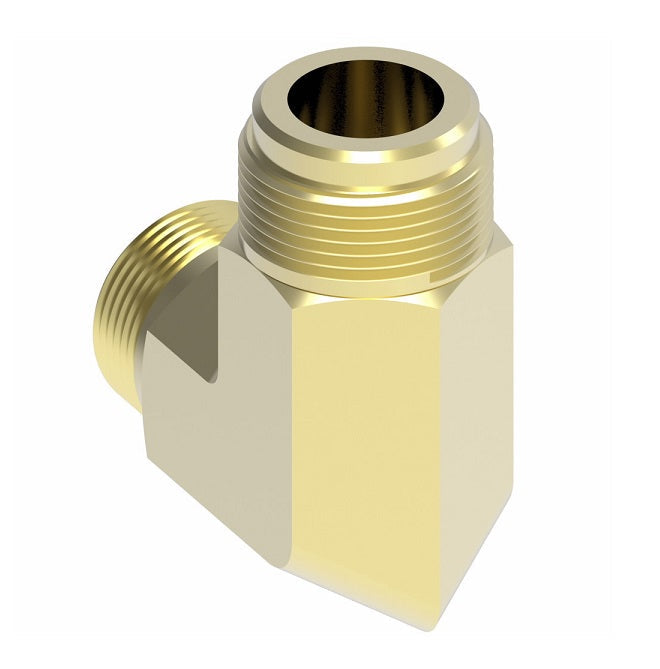

2003-8-6B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -08 Male NPTF x -06 Male SAE 45° Flare | Brass
2003-8-6B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -08 Male NPTF x -06 Male SAE 45° Flare | Brass
2003-8-6B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -08 Male NPTF x -06 Male SAE 45° Flare | Brass
2003-8-6B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -08 Male NPTF x -06 Male SAE 45° Flare | Brass

2003-8-6B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -08 Male NPTF x -06 Male SAE 45° Flare | Brass

$34.91 - $34.91
$34.91
$34.91 - $34.91
$34.91

Aeroquip® by Danfoss
External Pipe/45° Flare Adapter
Male NPTF x Male SAE 45° Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2003-8-6B Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male NPTF, 3/8in Male SAE 45 Flare
Material(s): Brass
Specifications:
  • Ref. SAE 010202
Part Number
Brass		 Tube O.D. Thread P Thread T A B
2003-2-4B 0.25" 1/8-27 7/16-20 0.76" 0.79"
2003-2-5B 0.31" 1/8-27 1/2-20 0.78" 0.91"
2003-2-6B 0.38" 1/8-27 5/8-18 0.91" 1.03"
2003-4-4B 0.25" 1/4-18 7/16-20 0.88" 0.99"
2003-4-5B 0.31" 1/4-18 1/2-20 0.92" 0.95"
2003-4-6B 0.38" 1/4-18 5/8-18 1.05" 0.98"
2003-4-8B 0.50" 1/4-18 3/4-16 1.19" 1.23"
2003-6-4B 0.25" 3/8-18 7/16-20 1.03" 0.94"
2003-6-5B 0.31" 3/8-18 1/2-20 0.91" 1.00"
2003-6-6B 0.38" 3/8-18 5/8-18 1.09" 1.04"
2003-6-8B 0.50" 3/8-18 3/4-16 1.12" 1.23"
2003-6-10B 0.63" 3/8-18 7/8-14 1.22" 1.42"
2003-8-6B 0.38" 1/2-14 5/8-18 1.35" 1.16"
2003-8-8B 0.50" 1/2-14 3/4-16 1.25" 1.32"
2003-8-10B 0.63" 1/2-14 7/8-14 1.37" 1.42"
2003-8-12B 0.75" 1/2-14 1-1/16-14 1.48" 1.62"
2003-12-8B 0.50" 3/4-14 3/4-16 1.48" 1.62"
2003-12-10B 0.63" 3/4-14 7/8-14 1.31" 1.43"
2003-12-12B 0.75" 3/4-14 1-1/16-14 1.50" 1.62"
