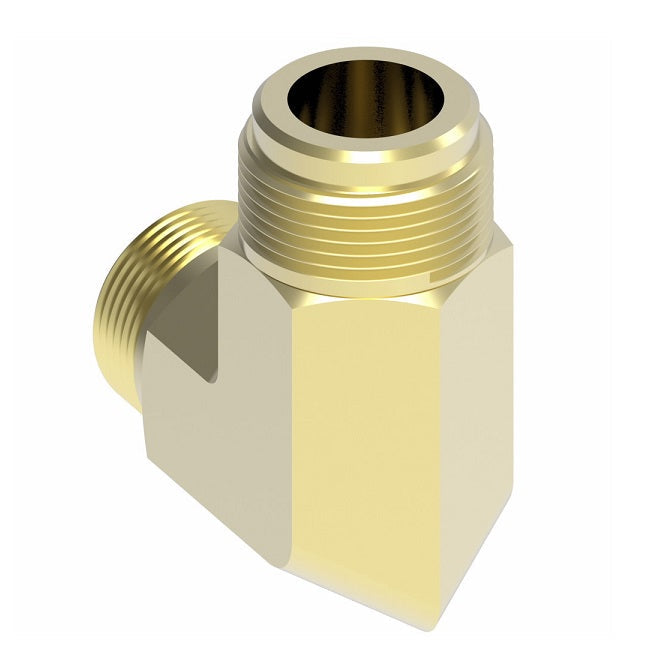

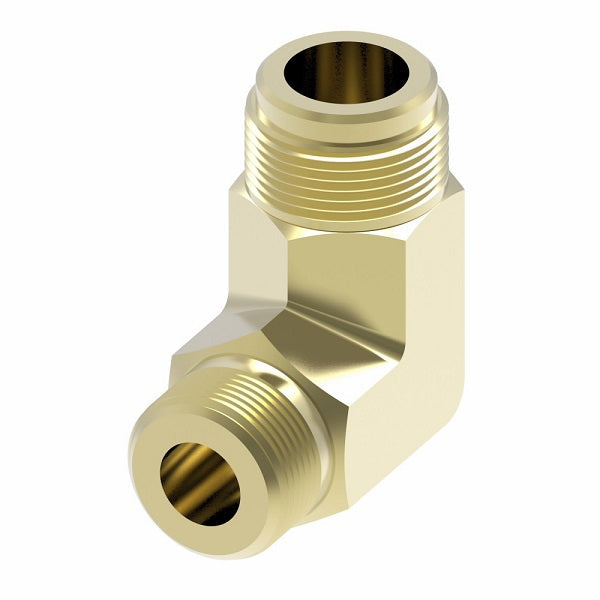

2003-4-5B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -04 Male NPTF x -05 Male SAE 45° Flare | Brass
2003-4-5B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -04 Male NPTF x -05 Male SAE 45° Flare | Brass
2003-4-5B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -04 Male NPTF x -05 Male SAE 45° Flare | Brass
2003-4-5B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -04 Male NPTF x -05 Male SAE 45° Flare | Brass

2003-4-5B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -04 Male NPTF x -05 Male SAE 45° Flare | Brass

$15.86 - $15.86
$15.86
$15.86 - $15.86
$15.86

Aeroquip® by Danfoss
External Pipe/45° Flare Adapter
Male NPTF x Male SAE 45° Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2003-4-5B Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male NPTF, 5/16in Male SAE 45 Flare
Material(s): Brass
Specifications:
  • Ref. SAE 010202
Part Number
Brass		 Tube O.D. Thread P Thread T A B
2003-2-4B 0.25" 1/8-27 7/16-20 0.76" 0.79"
2003-2-5B 0.31" 1/8-27 1/2-20 0.78" 0.91"
2003-2-6B 0.38" 1/8-27 5/8-18 0.91" 1.03"
2003-4-4B 0.25" 1/4-18 7/16-20 0.88" 0.99"
2003-4-5B 0.31" 1/4-18 1/2-20 0.92" 0.95"
2003-4-6B 0.38" 1/4-18 5/8-18 1.05" 0.98"
2003-4-8B 0.50" 1/4-18 3/4-16 1.19" 1.23"
2003-6-4B 0.25" 3/8-18 7/16-20 1.03" 0.94"
2003-6-5B 0.31" 3/8-18 1/2-20 0.91" 1.00"
2003-6-6B 0.38" 3/8-18 5/8-18 1.09" 1.04"
2003-6-8B 0.50" 3/8-18 3/4-16 1.12" 1.23"
2003-6-10B 0.63" 3/8-18 7/8-14 1.22" 1.42"
2003-8-6B 0.38" 1/2-14 5/8-18 1.35" 1.16"
2003-8-8B 0.50" 1/2-14 3/4-16 1.25" 1.32"
2003-8-10B 0.63" 1/2-14 7/8-14 1.37" 1.42"
2003-8-12B 0.75" 1/2-14 1-1/16-14 1.48" 1.62"
2003-12-8B 0.50" 3/4-14 3/4-16 1.48" 1.62"
2003-12-10B 0.63" 3/4-14 7/8-14 1.31" 1.43"
2003-12-12B 0.75" 3/4-14 1-1/16-14 1.50" 1.62"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
