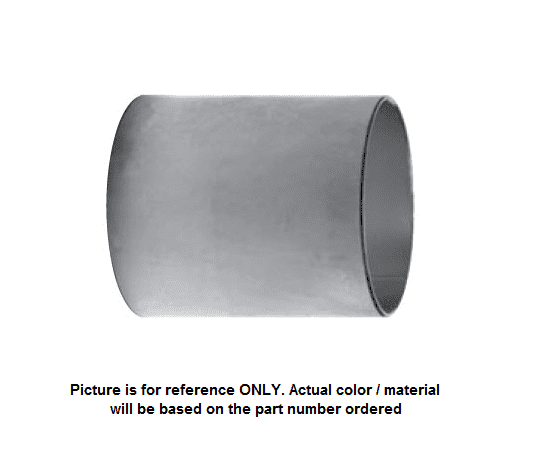

54220216 (20216CSCS) by PT-Coupling | ProGrip C50 External Crimp System | 2" Crimp Sleeve | 2.500" Sleeve ID | 2.8" Length | Plated Carbon Steel

54220216 (20216CSCS) by PT-Coupling | ProGrip C50 External Crimp System | 2" Crimp Sleeve | 2.500" Sleeve ID | 2.8" Length | Plated Carbon Steel

Save $0.47 Save $0.47
$4.22
$4.22 - $4.22
$4.22
$3.75
$3.75 - $3.75
$3.75
Specifications for Variant SKU: 54220216 PT-Coupling
Series: ProGrip C50 External Crimp System
Shape (Orientation): Straight
Material(s): Plated Carbon Steel

PRODUCT DESCRIPTION

PT Coupling - ProGrip™ C50 External Crimp System - Part CSCS - Crimp Sleeve - Plated Carbon Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • 1", 1-1/4", 1-1/2" sizes are interchangable.
  • 2" and 2-1/2" sizes are interchangeable.
  • Made in the USA
For use with:
Accessories:

Part
Name		 Item # Size Sleeve ID Length
05028CSCS 54205028 1/2" 0.875" 1.3"
05030CSCS 54205030 1/2" 0.938" 1.3"
07102CSCS 54207102 3/4" 1.063" 1.6"
07104CSCS 54207104 3/4" 1.125" 1.6"
07106CSCS 54207106 3/4" 1.188" 1.6"
07108CSCS 54207108 3/4" 1.250" 1.6"
07110CSCS 54207110 3/4" 1.313" 1.6"
10110CSCS 54210110 1" 1.313" 2.1"
10112CSCS 54210112 1" 1.375" 2.1"
10114CSCS 54210114 1" 1.438" 2.1"
10116CSCS 54210116 1" 1.500" 2.1"
10118CSCS 54210118 1" 1.563" 2.1"
10120CSCS 54210120 1" 1.625" 2.1"
10122CSCS 54210122 1" 1.688" 2.1"
12126CSCS 54212126 1-1/4" 1.813" 2.1"
12128CSCS 54212128 1-1/4" 1.875" 2.1"
12130CSCS 54212130 1-1/4" 1.938" 2.1"
15200CSCS 54215200 1-1/2" 2.000" 2.1"
15202CSCS 54215202 1-1/2" 2.063" 2.1"
15204CSCS 54215204 1-1/2" 2.125" 2.1"
15206CSCS 54215206 1-1/2" 2.188" 2.1"
15208CSCS 54215208 1-1/2" 2.250" 2.1"
20212CSCS 54220212 2" 2.375" 2.8"
20214CSCS 54220214 2" 2.438" 2.8"
20216CSCS 54220216 2" 2.500" 2.8"
20218CSCS 54220218 2" 2.563" 2.8"
20220CSCS 54220220 2" 2.625" 2.8"
20222CSCS 54220222 2" 2.688" 2.8"
20224CSCS 54220224 2" 2.750" 2.8"
20226CSCS 54220226 2" 2.813" 2.8"
20228CSCS 54220228 2" 2.875" 2.8"
20230CSCS 54220230 2" 2.938" 2.8"
25300CSCS 54225300 2-1/2" 3.000" 2.8"
25302CSCS 54225302 2-1/2" 3.063" 2.8"
25304CSCS 54225304 2-1/2" 3.125" 2.8"
25306CSCS 54225306 2-1/2" 3.188" 2.8"
25308CSCS 54225308 2-1/2" 3.250" 2.8"
30310CSCS 54230310 3" 3.313" 3.5"
30312CSCS 54230312 3" 3.375" 3.5"
30314CSCS 54230314 3" 3.438" 3.5"
30316CSCS 54230316 3" 3.500" 3.5"
30318CSCS 54230318 3" 3.563" 3.5"
30320CSCS 54230320 3" 3.625" 3.5"
30322CSCS 54230322 3" 3.688" 3.5"
30324CSCS 54230324 3" 3.750" 3.5"
30326CSCS 54230326 3" 3.813" 3.5"
30328CSCS 54230328 3" 3.875" 3.5"
30330CSCS 54230330 3" 3.938" 3.5"
30400CSCS 54230400 3" 4.000" 3.5"
30402CSCS 54230402 3" 4.063" 3.5"
30404CSCS 54230404 3" 4.125" 3.5"
40410CSCS 54240410 4" 4.313" 3.9"
40412CSCS 54240412 4" 4.375" 3.9"
40414CSCS 54240414 4" 4.438" 3.9"
40416CSCS 54240416 4" 4.500" 3.9"
40418CSCS 54240418 4" 4.563" 3.9"
40420CSCS 54240420 4" 4.625" 3.9"
40422CSCS 54240422 4" 4.688" 3.9"
40424CSCS 54240424 4" 4.750" 3.9"
40426CSCS 54240426 4" 4.813" 3.9"
40428CSCS 54240428 4" 4.875" 3.9"
40430CSCS 54240430 4" 4.938" 3.9"
40500CSCS 54240500 4" 5.000" 3.9"
40502CSCS 54240502 4" 5.063" 3.9"
50520CSCS 54250520 5" 5.625" 5.5"
50524CSCS 54250524 5" 5.750" 5.5"
60610CSCS 54260610 6" 6.313" 6.1"
60612CSCS 54260612 6" 6.375" 6.1"
60616CSCS 54260616 6" 6.500" 6.1"
60618CSCS 54260618 6" 6.563" 6.1"
60620CSCS 54260620 6" 6.625" 6.1"
60628CSCS 54260628 6" 6.875" 6.1"
60630CSCS 54260630 8" 6.938" 6.1"
80816CSCS 542808161 8" 8.500" 6.6"
80820CSCS 54280820 8" 8.625" 6.6"
80824CSCS 54280824 8" 8.750" 6.6"
80904CSCS 54280904 8" 9.125" 6.6"
80916CSCS 54280916 8" 9.500" 6.6"
80920CSCS 54280920 8" 9.625" 6.6"
1001024CSCS 542101024 10" 10.875" 7.4"
1001028CSCS 542101028 10" 12.750" 7.4"
1201227CSCS 542121227 12" 12.835" 9.45"
1201305CSCS 542121305 12" 13.150" 9.45"
It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org
