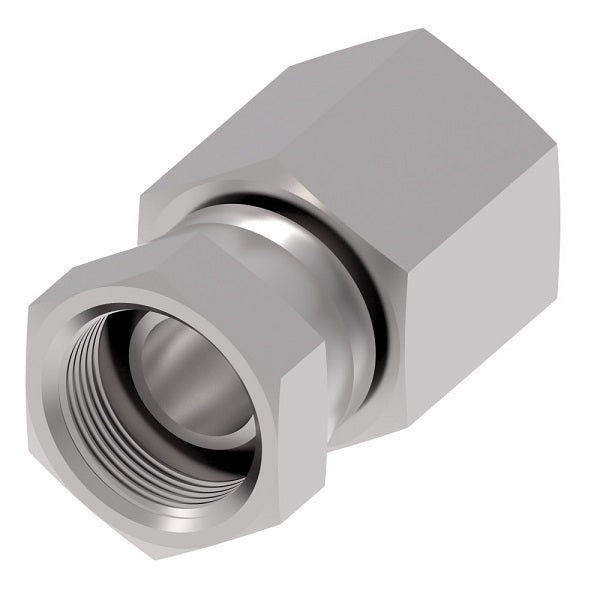

2046-12-12S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -12 Female NPSM x -12 Female NPTF | Steel
2046-12-12S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -12 Female NPSM x -12 Female NPTF | Steel
2046-12-12S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -12 Female NPSM x -12 Female NPTF | Steel
2046-12-12S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -12 Female NPSM x -12 Female NPTF | Steel

2046-12-12S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -12 Female NPSM x -12 Female NPTF | Steel

$18.89 - $18.89
$18.89
$18.89 - $18.89
$18.89

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter
Female NPSM x Female NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2046-12-12S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPSM, 3/4in Female NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140131
Steel
Part Number 		Thread P1 Thread P2 A
2046-2-2S 1/8-27 1/8-27 0.94"
2046-2-4S 1/8-27 1/4-18 1.06"
2046-4-4S 1/4-18 1/4-18 1.30"
2046-4-6S 1/4-18 3/8-18 1.31"
2046-6-4S 3/8-18 1/4-18 -
2046-6-6S 3/8-18 3/8-18 1.33"
2046-6-8S 3/8-18 1/2-14 1.45"
2046-8-6S 1/2-14 3/8-18 -
2046-8-8S 1/2-14 1/2-14 1.56"
2046-12-12S 3/4-14 3/4-14 1.77"
2046-12-16S 3/4-14 1-11-1/2 2.04"
2046-16-16S 1-11-1/2 1-11-1/2 2.06"
2046-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 2.06"
2046-24-24S 1-1/2-11-1/2 1-1/2-11-1/2 2.18"
2046-32-32S 2-11-1/2 2-11-1/2 2.30"
