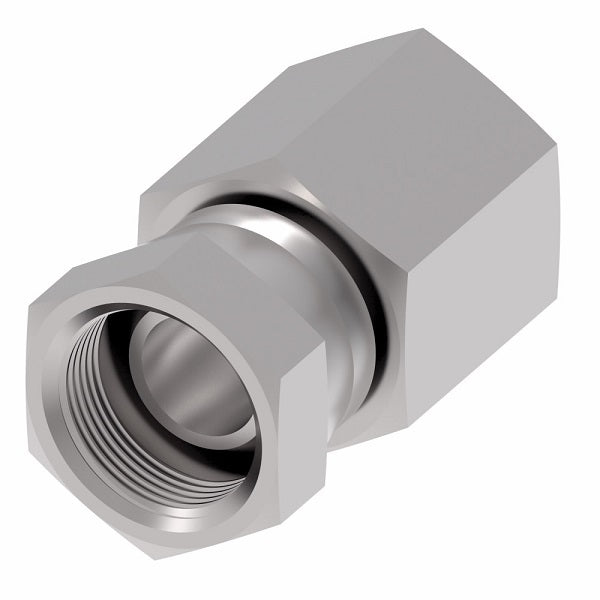

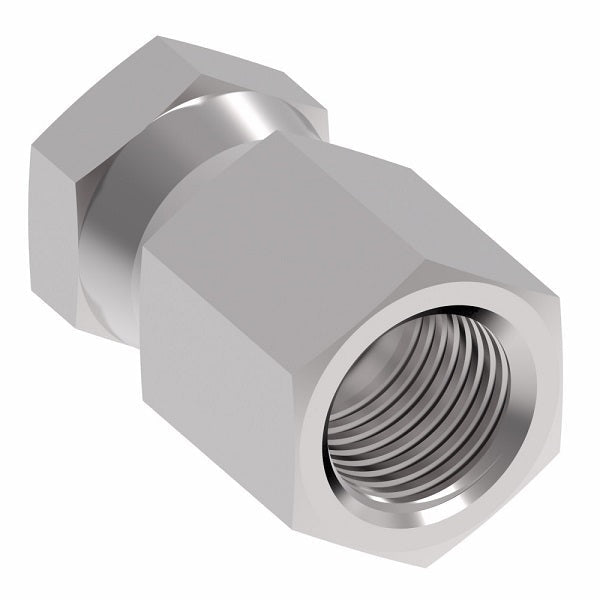

2046-8-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -08 Female NPSM x -08 Female NPTF | Steel

2046-8-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -08 Female NPSM x -08 Female NPTF | Steel

Name: 2046-8-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -08 Female NPSM x -08 Female NPTF | Steel
Brand: Danfoss/Eaton
SKU: 2046-8-8S Danfoss
Price: 6.28 USD
Availability: InStock

$6.28 - $6.28

$6.28

$6.28 - $6.28

$6.28

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter
Female NPSM x Female NPTF
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 2046-8-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPSM, 1/2in Female NPTF
Material(s):	Steel
Special Properties:	Swivel

Specifications:
Ref. SAE 140131


Steel Part Number	Thread P1	Thread P2	A
2046-2-2S	1/8-27	1/8-27	0.94"
2046-2-4S	1/8-27	1/4-18	1.06"
2046-4-4S	1/4-18	1/4-18	1.30"
2046-4-6S	1/4-18	3/8-18	1.31"
2046-6-4S	3/8-18	1/4-18	-
2046-6-6S	3/8-18	3/8-18	1.33"
2046-6-8S	3/8-18	1/2-14	1.45"
2046-8-6S	1/2-14	3/8-18	-
2046-8-8S	1/2-14	1/2-14	1.56"
2046-12-12S	3/4-14	3/4-14	1.77"
2046-12-16S	3/4-14	1-11-1/2	2.04"
2046-16-16S	1-11-1/2	1-11-1/2	2.06"
2046-20-20S	1-1/4-11-1/2	1-1/4-11-1/2	2.06"
2046-24-24S	1-1/2-11-1/2	1-1/2-11-1/2	2.18"
2046-32-32S	2-11-1/2	2-11-1/2	2.30"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
