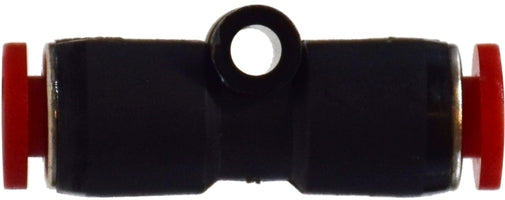

20600 (20-600) Midland Metric Push-In Fitting - Union - 4mm Tube OD - Composite Body

20600 by Midland | Metric Push-In Fitting | Union | 4mm Tube OD | Composite Body

Save $0.73 Save $0.73
$6.53
$6.53 - $6.53
$6.53
$5.80
$5.80 - $5.80
$5.80

Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Metric Union

The latest generation of composite material is used in the body construction in addition to nickel-plated brass on threaded components and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 599 Units
Specifications for Variant SKU: 20600 Midland
Shape (Orientation): Straight
Ends Configuration: 4mm Push-to-Connect, 4mm Push-to-Connect, Some Ends Match
Material(s): Plastic, Brass
Seal Material(s): NBR

SPECIFICATIONS

Pressure Operating Range: 0 to 220 PSI (15 bar) Vacuum Operating Range: 0 to 29hg (-.99 bar)
Temperature: -50 F to + 1750 F (-200 C to + 800 C) Media: Compressed air, Non-toxic fluids (water)
Materials of Construcion
1 Body Composite
2 Body Nickel Plated Brass
3 Tube Release Acetal Resin
4 Retainer Nickel Plated Brass
5 Gripper Ring Stainless Steel
6 Spacer Composite
7 Thread Packing NBR 70
8 O-Ring NBR 70
9 Thread Seal NBR 70
Part Number Tube O.D.
(mm)
20600
(20-600)		 4mm
20601
(20-601)		 6mm
20602
(20-602)		 8mm
20603
(20-603)		 10mm
20604
(20-604)		 12mm

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
