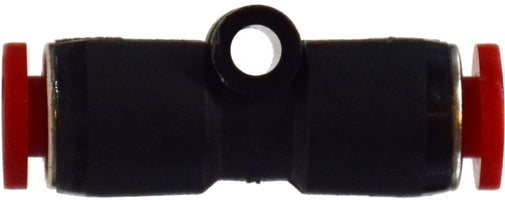

20603 (20-603) Midland Metric Push-In Fitting - Union - 10mm Tube OD - Composite Body

20603 by Midland | Metric Push-In Fitting | Union | 10mm Tube OD | Composite Body

Save $4.26 Save $4.26
$10.65
$10.65 - $10.65
$10.65
$6.39
$6.39 - $6.39
$6.39

Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Metric Union

The latest generation of composite material is used in the body construction in addition to nickel-plated brass on threaded components and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 663 Units
Specifications for Variant SKU: 20603 Midland
Shape (Orientation): Straight
Ends Configuration: 10mm Push-to-Connect, 10mm Push-to-Connect, Some Ends Match
Material(s): Plastic, Brass
Seal Material(s): NBR

SPECIFICATIONS

Pressure Operating Range: 0 to 220 PSI (15 bar) Vacuum Operating Range: 0 to 29hg (-.99 bar)
Temperature: -50 F to + 1750 F (-200 C to + 800 C) Media: Compressed air, Non-toxic fluids (water)
Materials of Construcion
1 Body Composite
2 Body Nickel Plated Brass
3 Tube Release Acetal Resin
4 Retainer Nickel Plated Brass
5 Gripper Ring Stainless Steel
6 Spacer Composite
7 Thread Packing NBR 70
8 O-Ring NBR 70
9 Thread Seal NBR 70
Part Number Tube O.D.
(mm)
20600
(20-600)		 4mm
20601
(20-601)		 6mm
20602
(20-602)		 8mm
20603
(20-603)		 10mm
20604
(20-604)		 12mm

Dimension Data can change without notice.
