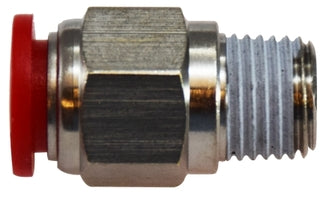

20633 (20-633) Midland Metric Push-In Fitting - Male Adapter - 6mm Tube OD x 1/4" Male BSPT Thread - Nickel Plated Brass

20633 by Midland | Metric Push-In Fitting | 6mm Tube OD x 1/4" Male BSPT Thread | Adapter | Nickel Plated Brass

Save $0.65 Save $0.65
$5.88
$5.88 - $5.88
$5.88
$5.23
$5.23 - $5.23
$5.23

Midland Industries
Brass Fitting - Nickel Plated Brass Push-in Fitting - Male Adapter

The latest generation of composite material is used in the body construction in addition to nickel-plated brass on threaded components and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 102 Units
Specifications for Variant SKU: 20633 Midland
Shape (Orientation): Straight
Ends Configuration: 6mm Push-to-Connect, 1/4in Male BSPT
Material(s): Nickel Plated Brass
Seal Material(s): NBR

SPECIFICATIONS

Pressure Operating Range: 0 to 220 PSI (15 bar) Vacuum Operating Range: 0 to 29hg (-.99 bar)
Temperature: -50 F to + 1750 F (-200 C to + 800 C) Media: Compressed air, Non-toxic fluids (water)
Materials of Construcion
1 Body Composite
2 Body Nickel Plated Brass
3 Tube Release Acetal Resin
4 Retainer Nickel Plated Brass
5 Gripper Ring Stainless Steel
6 Spacer Composite
7 Thread Packing NBR 70
8 O-Ring NBR 70
9 Thread Seal NBR 70
Crossover Series:
3175
Part Number Tube O.D.
(mm)		 Male BSPT
20630
(20-630)		 4mm 1/8"
20631
(20-631)		 4mm 1/4"
20632
(20-632)		 6mm 1/8"
20633
(20-633)		 6mm 1/4"
20634
(20-634)		 8mm 1/4"
20635
(20-635)		 8mm 3/8"
20636
(20-636)		 10mm 1/4"
20637
(20-637)		 10mm 3/8"
20801
(20-801)		 12mm 1/4"
20638
(20-638)		 12mm 3/8"

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
