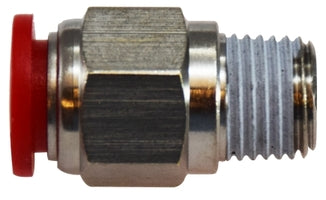

20631 (20-631) Midland Metric Push-In Fitting - Male Adapter - 4mm Tube OD x 1/4" Male BSPT Thread - Nickel Plated Brass

20631 by Midland | Metric Push-In Fitting | 4mm Tube OD x 1/4" Male BSPT Thread | Adapter | Nickel Plated Brass

Save $3.51 Save $3.51
$8.78
$8.78 - $8.78
$8.78
$5.27
$5.27 - $5.27
$5.27

Midland Industries
Brass Fitting - Nickel Plated Brass Push-in Fitting - Male Adapter

The latest generation of composite material is used in the body construction in addition to nickel-plated brass on threaded components and stainless steel on the tube gripper.

Inventory @ Manufacturers Warehouse: 105 Units
Specifications for Variant SKU: 20631 Midland
Shape (Orientation): Straight
Ends Configuration: 4mm Push-to-Connect, 1/4in Male BSPT
Material(s): Nickel Plated Brass
Seal Material(s): NBR

SPECIFICATIONS

Pressure Operating Range: 0 to 220 PSI (15 bar) Vacuum Operating Range: 0 to 29hg (-.99 bar)
Temperature: -50 F to + 1750 F (-200 C to + 800 C) Media: Compressed air, Non-toxic fluids (water)
Materials of Construcion
1 Body Composite
2 Body Nickel Plated Brass
3 Tube Release Acetal Resin
4 Retainer Nickel Plated Brass
5 Gripper Ring Stainless Steel
6 Spacer Composite
7 Thread Packing NBR 70
8 O-Ring NBR 70
9 Thread Seal NBR 70
Crossover Series:
3175
Part Number Tube O.D.
(mm)		 Male BSPT
20630
(20-630)		 4mm 1/8"
20631
(20-631)		 4mm 1/4"
20632
(20-632)		 6mm 1/8"
20633
(20-633)		 6mm 1/4"
20634
(20-634)		 8mm 1/4"
20635
(20-635)		 8mm 3/8"
20636
(20-636)		 10mm 1/4"
20637
(20-637)		 10mm 3/8"
20801
(20-801)		 12mm 1/4"
20638
(20-638)		 12mm 3/8"

Dimension Data can change without notice.
