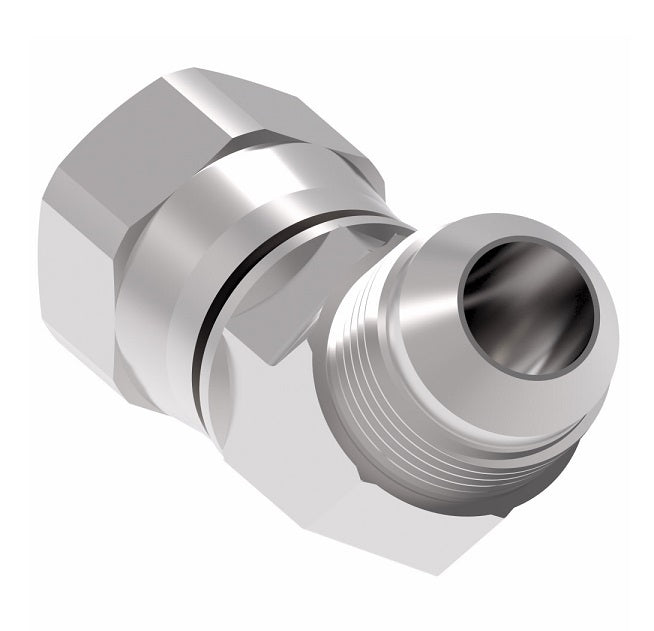

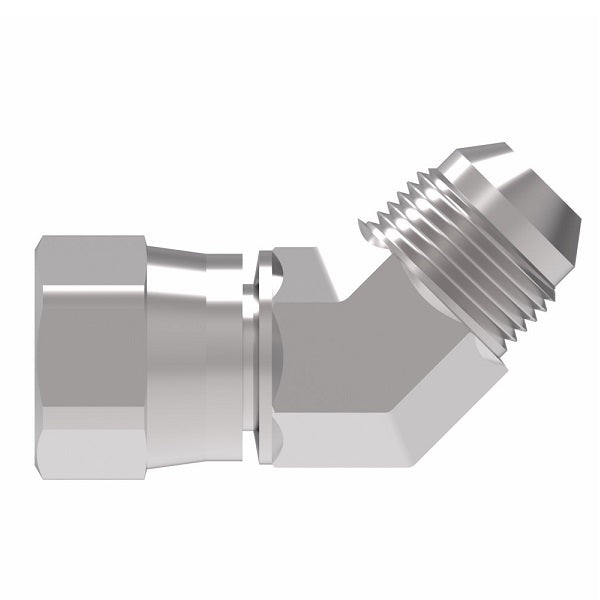

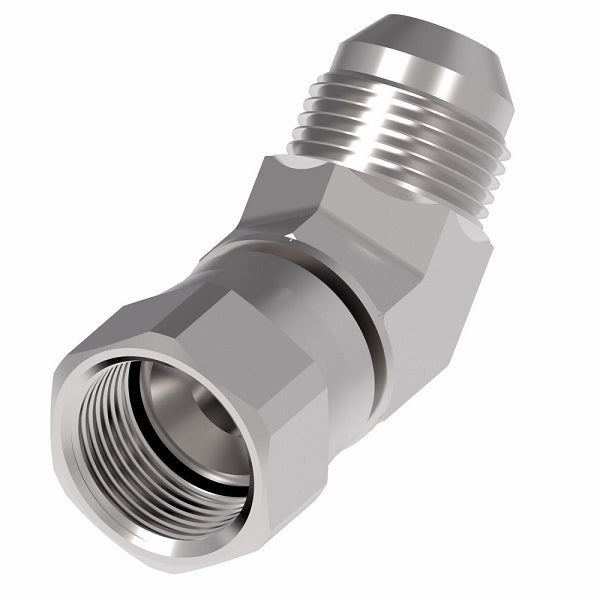

2070-12-12S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel

2070-12-12S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel

Name: 2070-12-12S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2070-12-12S Danfoss
Price: 18.12 USD
Availability: InStock

$18.12 - $18.12

$18.12

$18.12 - $18.12

$18.12

Aeroquip® by Danfoss
37° Flare Swivel/37° Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2070-12-12S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Male JIC
Material(s):	Steel
Special Properties:	Swivel

Specifications:
Ref. SAE 070321


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
2070-4-4S	0.25"	7/16-20	7/16-20	0.60"	0.72"
2070-5-5S	0.31"	1/2-20	1/2-20	0.62"	0.77"
2070-6-6S	0.38"	9/16-18	9/16-18	0.74"	0.83"
2070-8-8S	0.50"	3/4-16	3/4-16	0.86"	0.98"
2070-10-10S	0.63"	7/8-14	7/8-14	0.94"	1.11"
2070-12-12S	0.75"	1-1/16-12	1-1/16-12	0.94"	1.28"
2070-14-14S	0.88"	1-3/16-12	1-3/16-12	1.04"	1.45"
2070-16-16S	1.00"	1-5/16-12	1-5/16-12	1.16"	1.47"
2070-20-20S	1.25"	1-5/8-12	1-5/8-12	1.40"	1.59"
2070-24-24S	1.50"	1-7/8-12	1-7/8-12	-	-
