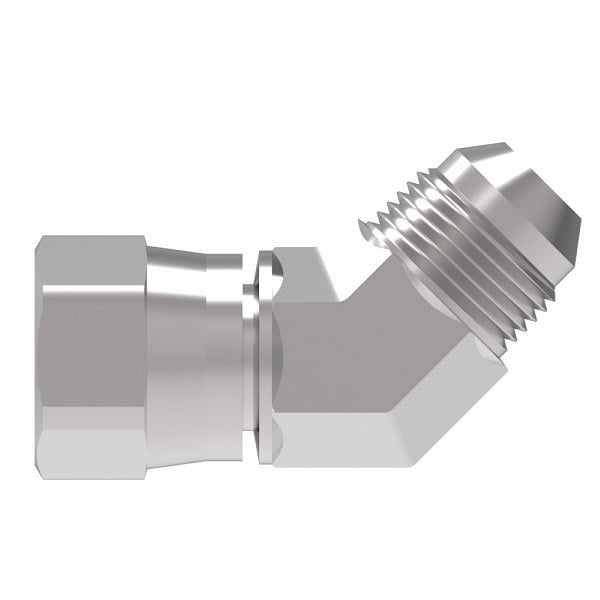

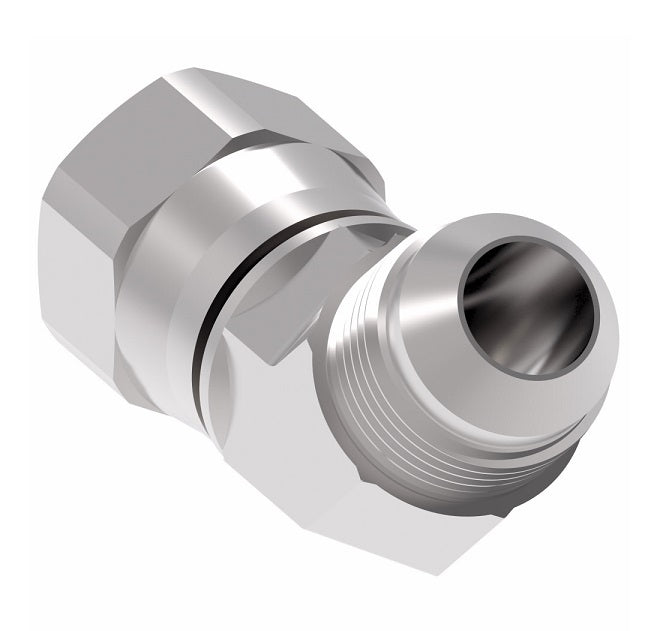

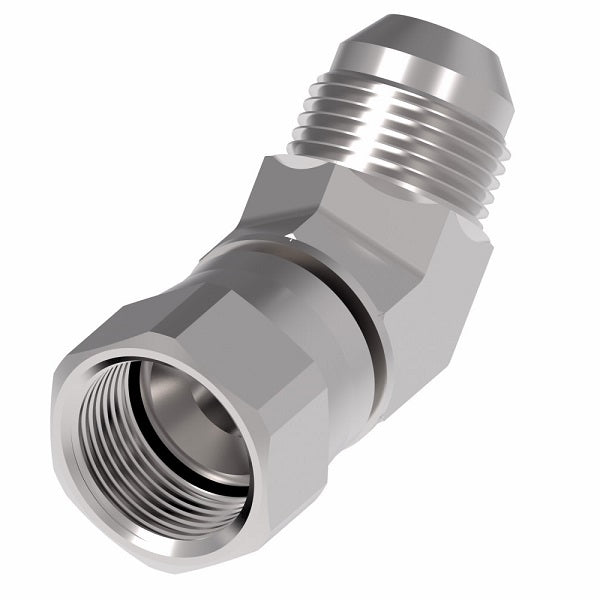

2070-16-16S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel

2070-16-16S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel

Name: 2070-16-16S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2070-16-16S Danfoss
Price: 26.48 USD
Availability: InStock

$26.48 - $26.48

$26.48

$26.48 - $26.48

$26.48

Aeroquip® by Danfoss
37° Flare Swivel/37° Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2070-16-16S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1in Female JIC, 1in Male JIC
Material(s):	Steel
Special Properties:	Swivel

Specifications:
Ref. SAE 070321


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
2070-4-4S	0.25"	7/16-20	7/16-20	0.60"	0.72"
2070-5-5S	0.31"	1/2-20	1/2-20	0.62"	0.77"
2070-6-6S	0.38"	9/16-18	9/16-18	0.74"	0.83"
2070-8-8S	0.50"	3/4-16	3/4-16	0.86"	0.98"
2070-10-10S	0.63"	7/8-14	7/8-14	0.94"	1.11"
2070-12-12S	0.75"	1-1/16-12	1-1/16-12	0.94"	1.28"
2070-14-14S	0.88"	1-3/16-12	1-3/16-12	1.04"	1.45"
2070-16-16S	1.00"	1-5/16-12	1-5/16-12	1.16"	1.47"
2070-20-20S	1.25"	1-5/8-12	1-5/8-12	1.40"	1.59"
2070-24-24S	1.50"	1-7/8-12	1-7/8-12	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
