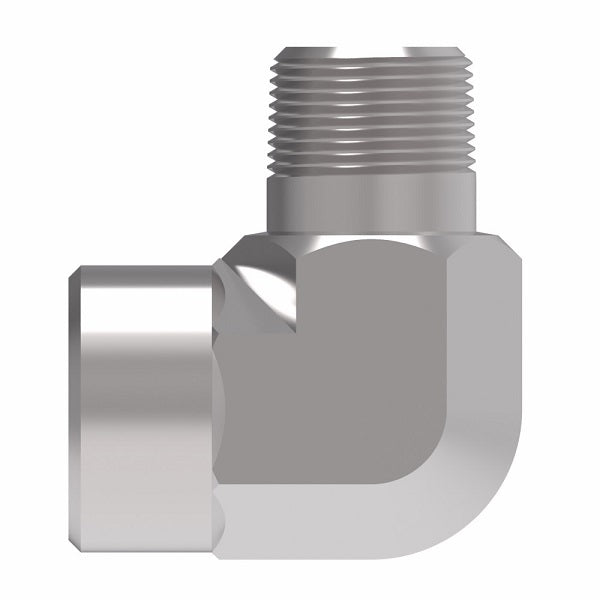

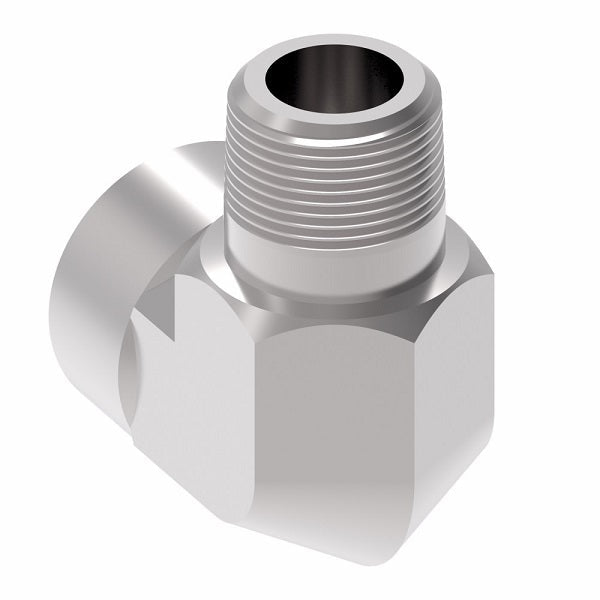

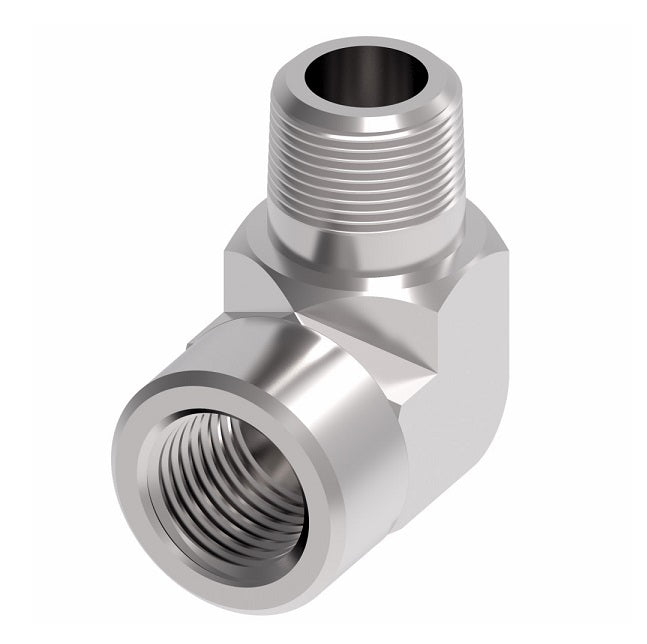

2089-24-24S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -24 Male NPTF x -24 Female NPTF | Steel
2089-24-24S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -24 Male NPTF x -24 Female NPTF | Steel
2089-24-24S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -24 Male NPTF x -24 Female NPTF | Steel
2089-24-24S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -24 Male NPTF x -24 Female NPTF | Steel

2089-24-24S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -24 Male NPTF x -24 Female NPTF | Steel

$93.24 - $93.24
$93.24
$93.24 - $93.24
$93.24

Aeroquip® by Danfoss
External Pipe/Internal Pipe Adapter
Male NPTF x Female NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2089-24-24S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Male NPTF, 1-1/2in Female NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140239
Steel Part Number Stainless Steel Part Number Brass Part Number Thread P1 Thread P2 A B
2089-2-2S - - 1/8-27 1/8-27 0.78" 0.66"
2089-2-4S - - 1/8-27 1/4-18 0.90" 0.88"
2089-4-2S - - 1/4-18 1/8-27 1.09" 0.67"
2089-4-4S - 2089-4-4B 1/4-18 1/4-18 1.09" 0.88"
2089-4-6S - - 1/4-18 3/8-18 1.22" 1.02"
2089-6-4S - - 3/8-18 1/4-18 1.22" 1.01"
2089-6-6S 259-2089-6-6 - 3/8-18 3/8-18 1.22" 1.02"
2089-6-8S - - 3/8-18 1/2-14 1.28" 1.23"
2089-8-6S - - 1/2-14 3/8-18 1.47" 1.01"
2089-8-8S - - 1/2-14 1/2-14 1.47" 1.23"
2089-8-12S - - 1/2-14 3/4-14 1.59" 1.36"
2089-12-8S - - 3/4-14 1/2-14 1.59" 1.35"
2089-12-12S - - 3/4-14 3/4-14 1.59" 1.36"
2089-16-16S - - 1-11-1/2 1-11-1/2 1.97" 1.62"
2089-20-20S - - 1-1/4-11-1/2 1-1/4-11-1/2 2.38" 1.70"
2089-24-24S - - 1-1/2-11-1/2 1-1/2-11-1/2 2.64" 2.08"
2089-32-32S - - 2-11-1/2 2-11-1/2 - 2.39"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
