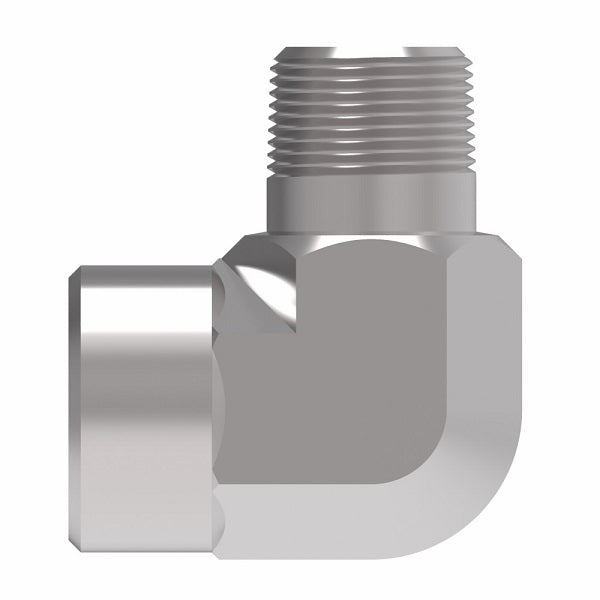

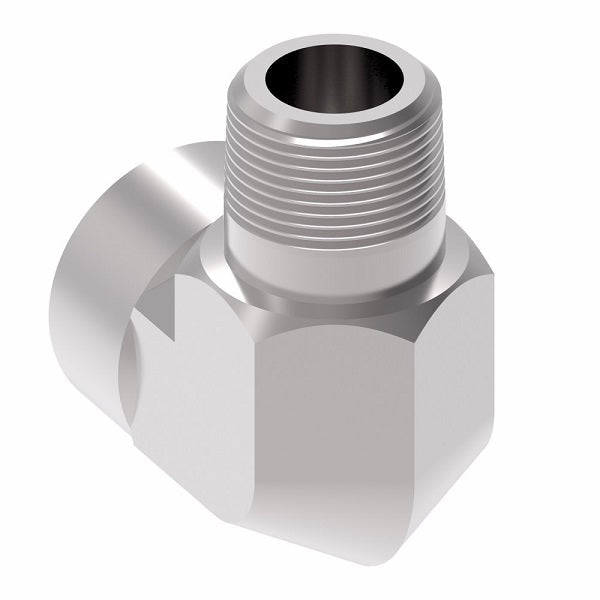

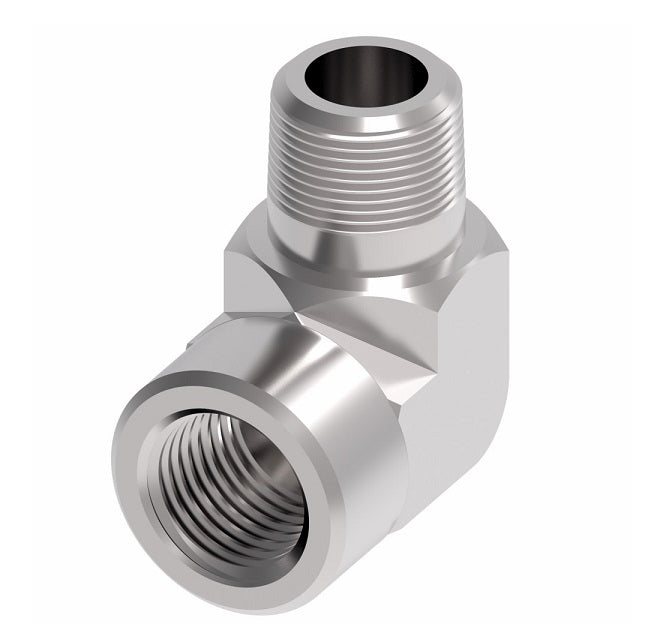

2089-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel
2089-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel
2089-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel
2089-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel

2089-2-2S Aeroquip by Danfoss | External Pipe/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel

$3.70 - $3.70
$3.70
$3.70 - $3.70
$3.70

Aeroquip® by Danfoss
External Pipe/Internal Pipe Adapter
Male NPTF x Female NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2089-2-2S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Male NPTF, 1/8in Female NPTF
Specifications:
  • Ref. SAE 140239
Steel Part Number Stainless Steel Part Number Brass Part Number Thread P1 Thread P2 A B
2089-2-2S - - 1/8-27 1/8-27 0.78" 0.66"
2089-2-4S - - 1/8-27 1/4-18 0.90" 0.88"
2089-4-2S - - 1/4-18 1/8-27 1.09" 0.67"
2089-4-4S - 2089-4-4B 1/4-18 1/4-18 1.09" 0.88"
2089-4-6S - - 1/4-18 3/8-18 1.22" 1.02"
2089-6-4S - - 3/8-18 1/4-18 1.22" 1.01"
2089-6-6S 259-2089-6-6 - 3/8-18 3/8-18 1.22" 1.02"
2089-6-8S - - 3/8-18 1/2-14 1.28" 1.23"
2089-8-6S - - 1/2-14 3/8-18 1.47" 1.01"
2089-8-8S - - 1/2-14 1/2-14 1.47" 1.23"
2089-8-12S - - 1/2-14 3/4-14 1.59" 1.36"
2089-12-8S - - 3/4-14 1/2-14 1.59" 1.35"
2089-12-12S - - 3/4-14 3/4-14 1.59" 1.36"
2089-16-16S - - 1-11-1/2 1-11-1/2 1.97" 1.62"
2089-20-20S - - 1-1/4-11-1/2 1-1/4-11-1/2 2.38" 1.70"
2089-24-24S - - 1-1/2-11-1/2 1-1/2-11-1/2 2.64" 2.08"
2089-32-32S - - 2-11-1/2 2-11-1/2 - 2.39"
