220-0862X100 Kuri-Tec by Kuriyama | 220 Series | Linear Low Density Food Grade Tubing | 1/2" OD | .375" ID | Polyethylene | 100ft Length

220-0862X100 Kuri-Tec by Kuriyama | 220 Series | Linear Low Density Food Grade Tubing | 1/2" OD | .375" ID | Polyethylene | 100ft Length

Save $11.76 Save $11.76
$41.16
$41.16 - $41.16
$41.16
$29.40
$29.40 - $29.40
$29.40

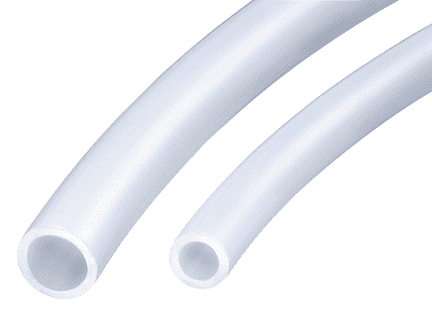

Kuriyama Kuri Tec® Series 220 Linear Low Density Food Grade Polyethylene Tubing LLDPE food grade tubing for standard industrial applications.

Package Quantity: 100 FT

Specifications for Variant SKU: 220-0862X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: 220 Series
Hose Color(s): White/Off-White
Internal Diameter: 0.375in
Outer Diameter: 0.50in
Tubing Construction: Polyethylene
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant





SPECIFICATIONS

Application: Transfer of air and liquids in industrial applications. Water lines, Water softener lines, Pneumatic logic control lines, Vending equipment SAE Rating: N/A
Other Ratings: N/A Tube: Linear low density food grade polyethylene tubing in compliance with FDA(06) requirements - natural color. Also in compliance with RoHS(15) requirements.
Reinforcement: N/A Cover: N/A
Temperature Range: -50 deg. F (-45 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(07), RoHS(15)
Other Features:
  • Economical and lightweight.
  • LLDPE resin provides excellent environmental stress crack resistance.
  • Natural color.
  • Excellent resistance to solvents.
  • Chemically inert.
Part Number Nominal OD Nominal ID Nominal Wall Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Spool/Coil Pkg.
220-0440X100 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 100Ft Coil 1 lbs.
220-0440X1K 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
220-0440X2K 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 2000Ft Spool 22 lbs.
220-0440X500 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 500Ft Spool 6 lbs.
220-0462X2K 1/4" 6.4mm .125" 3.1mm .062" 1.6mm 150 PSI 75 PSI 2000Ft Spool 30 lbs.
220-0562X15C 5/16" 7.9mm .188" 4.8mm .062" 1.6mm 150 PSI 75 PSI 1500ft Spool 30 lbs
220-0662X100 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 100ft Coil 3 lbs
220-0662X1K 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 1000ft Spool 25 lbs
220-0662X500 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 500ft Spool 13 lbs
220-0862X100 1/2" 12.7mm .375" 9.5mm .062" 1.6mm 100 PSI 35 PSI 100ft Spool 3.6 lbs
220-0862X500 1/2" 12.7mm .375" 9.5mm .062" 1.6mm 100 PSI 35 PSI 500ft Spool 18 lbs
220-1062X100 5/8" 15.9mm .500" 12.7mm .062" 1.6mm 75 PSI 25 PSI 100ft Coil 23 lbs
220-1062X500 5/8" 15.9mm .500" 12.7mm .062" 1.6mm 75 PSI 25 PSI 500ft Coil 23 lbs
220-1262X500 5/8" N/A 3/4" N/A N/A N/A N/A N/A 500ft N/A 30 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
