220-1062X500 Kuri-Tec by Kuriyama | 220 Series | Linear Low Density Food Grade Tubing | 5/8" OD | .500" ID | Polyethylene | 500ft Length

220-1062X500 Kuri-Tec by Kuriyama | 220 Series | Linear Low Density Food Grade Tubing | 5/8" OD | .500" ID | Polyethylene | 500ft Length

Save $21.03 Save $21.03
$237.03
$237.03 - $237.03
$237.03
$216.00
$216.00 - $216.00
$216.00

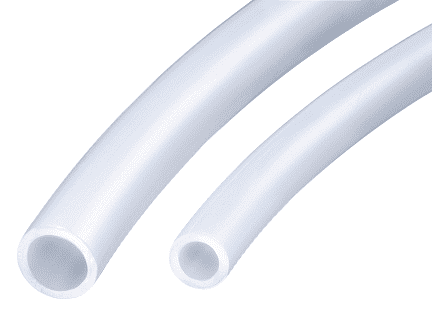

Kuriyama Kuri Tec® Series 220 Linear Low Density Food Grade Polyethylene Tubing LLDPE food grade tubing for standard industrial applications.

Package Quantity: 500 FT

Specifications for Variant SKU: 220-1062X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: 220 Series
Hose Color(s): White/Off-White
Internal Diameter: 0.50in
Outer Diameter: 0.625in
Tubing Construction: Polyethylene
Applicable Specs & Approvals: Applicable FDA Requirements, RoHS Compliant





SPECIFICATIONS

Application: Transfer of air and liquids in industrial applications. Water lines, Water softener lines, Pneumatic logic control lines, Vending equipment SAE Rating: N/A
Other Ratings: N/A Tube: Linear low density food grade polyethylene tubing in compliance with FDA(06) requirements - natural color. Also in compliance with RoHS(15) requirements.
Reinforcement: N/A Cover: N/A
Temperature Range: -50 deg. F (-45 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(07), RoHS(15)
Other Features:
  • Economical and lightweight.
  • LLDPE resin provides excellent environmental stress crack resistance.
  • Natural color.
  • Excellent resistance to solvents.
  • Chemically inert.
Part Number Nominal OD Nominal ID Nominal Wall Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Spool/Coil Pkg.
220-0440X100 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 100Ft Coil 1 lbs.
220-0440X1K 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
220-0440X2K 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 2000Ft Spool 22 lbs.
220-0440X500 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 500Ft Spool 6 lbs.
220-0462X2K 1/4" 6.4mm .125" 3.1mm .062" 1.6mm 150 PSI 75 PSI 2000Ft Spool 30 lbs.
220-0562X15C 5/16" 7.9mm .188" 4.8mm .062" 1.6mm 150 PSI 75 PSI 1500ft Spool 30 lbs
220-0662X100 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 100ft Coil 3 lbs
220-0662X1K 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 1000ft Spool 25 lbs
220-0662X500 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 500ft Spool 13 lbs
220-0862X100 1/2" 12.7mm .375" 9.5mm .062" 1.6mm 100 PSI 35 PSI 100ft Spool 3.6 lbs
220-0862X500 1/2" 12.7mm .375" 9.5mm .062" 1.6mm 100 PSI 35 PSI 500ft Spool 18 lbs
220-1062X100 5/8" 15.9mm .500" 12.7mm .062" 1.6mm 75 PSI 25 PSI 100ft Coil 23 lbs
220-1062X500 5/8" 15.9mm .500" 12.7mm .062" 1.6mm 75 PSI 25 PSI 500ft Coil 23 lbs
220-1262X500 5/8" N/A 3/4" N/A N/A N/A N/A N/A 500ft N/A 30 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
