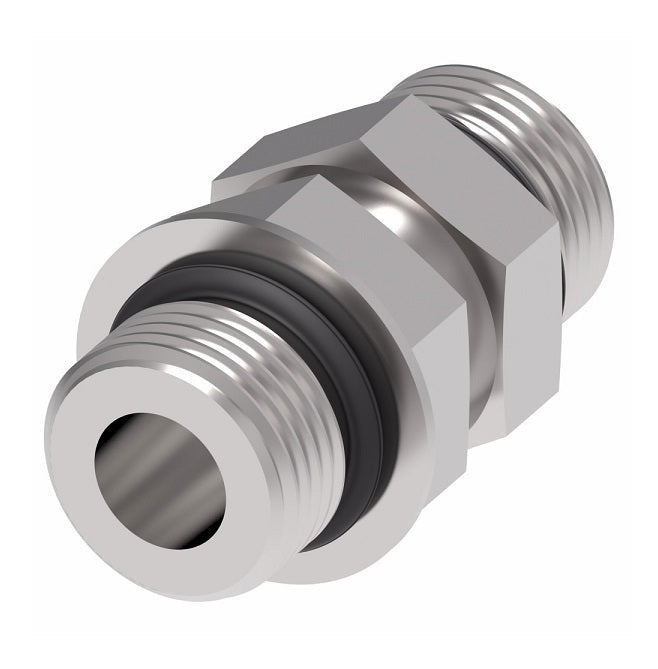

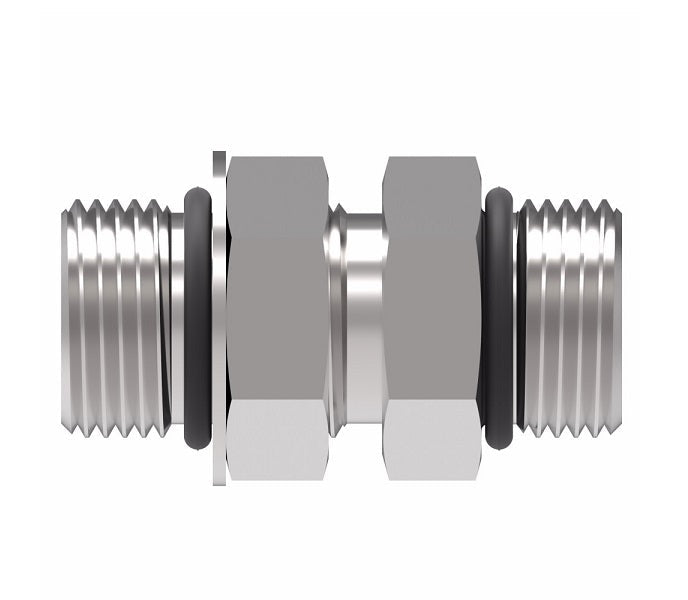

2220-4-4S Aeroquip by Danfoss | SAE O-Ring Boss/Adjustable SAE O-Ring Boss (ORB) Adapter | -04 Male SAE O-Ring Boss x -04 Male SAE O-Ring Boss | Steel

2220-4-4S Aeroquip by Danfoss | SAE O-Ring Boss/Adjustable SAE O-Ring Boss (ORB) Adapter | -04 Male SAE O-Ring Boss x -04 Male SAE O-Ring Boss | Steel

Name: 2220-4-4S Aeroquip by Danfoss | SAE O-Ring Boss/Adjustable SAE O-Ring Boss (ORB) Adapter | -04 Male SAE O-Ring Boss x -04 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 2220-4-4S Danfoss
Price: 55.68 USD
Availability: InStock

$55.68 - $55.68

$55.68

$55.68 - $55.68

$55.68

Aeroquip® by Danfoss
SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket)

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2220-4-4S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male O-Ring Boss, 1/4in Male O-Ring Boss
Material(s):	Steel

Construction:
Buna-N O-Rings are standard.


Steel Part Number	Thread T1	A	B	D Hole	E Hex	F Hex
2220-4-4S	7/16-20	1.37"	0.38"	0.17"	0.56"	0.56"
2220-6-6S	9/16-18	1.49"	0.39"	0.30"	0.69"	0.69"
2220-8-8S	3/4-16	1.75"	0.44"	0.39"	0.88"	0.88"
2220-10-10S	7/8-14	2.04	0.50"	0.48"	1.00"	1.00"
2220-12-12S	1-1/16-12	2.13"	0.59"	0.61"	1.25"	1.25"
2220-16-16S	1-5/16-12	2.36"	0.59"	0.84"	1.50"	1.50"
2220-20-20S	1-5/8-12	2.32"	0.59"	1.08"	1.88"	1.88"
2220-24-24S	1-7/8-12	2.48"	0.59"	1.32"	2.13"	2.13"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
