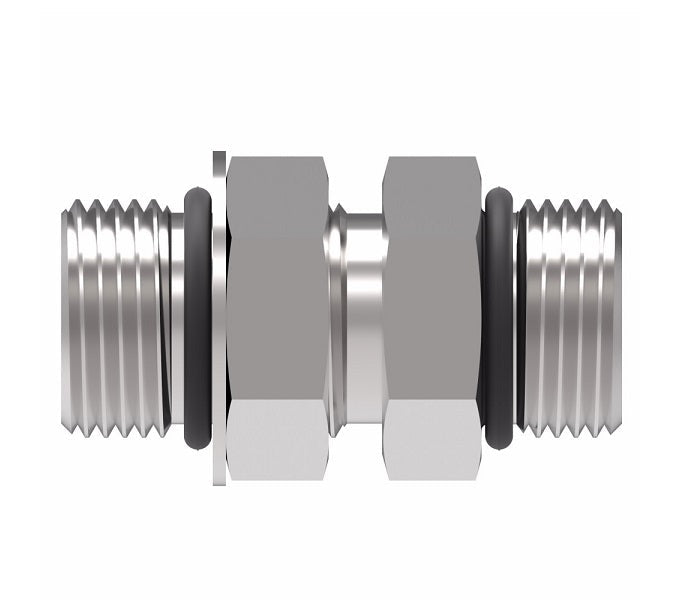

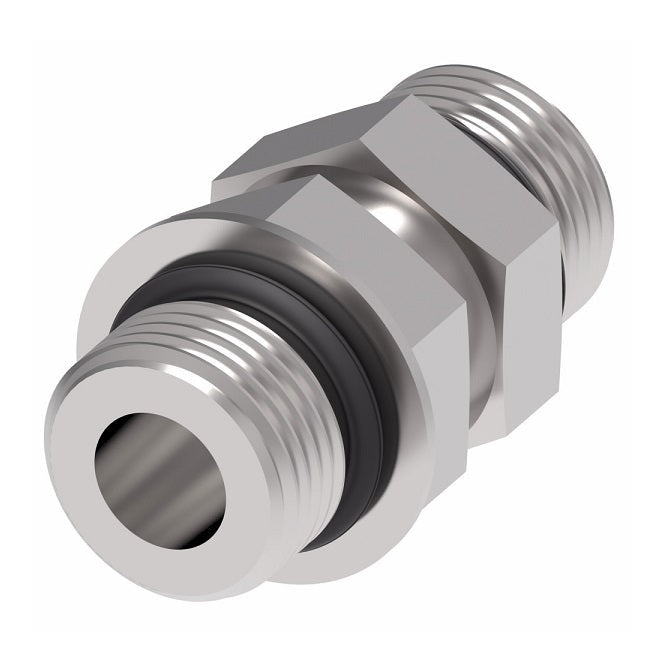

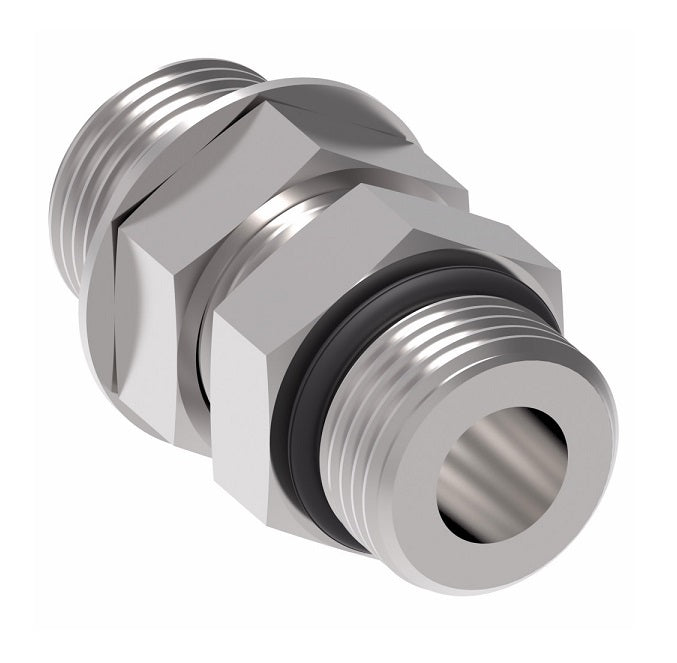

2220-8-8S Aeroquip by Danfoss | SAE O-Ring Boss/Adjustable SAE O-Ring Boss (ORB) Adapter | -08 Male SAE O-Ring Boss x -08 Male SAE O-Ring Boss | Steel

2220-8-8S Aeroquip by Danfoss | SAE O-Ring Boss/Adjustable SAE O-Ring Boss (ORB) Adapter | -08 Male SAE O-Ring Boss x -08 Male SAE O-Ring Boss | Steel

Name: 2220-8-8S Aeroquip by Danfoss | SAE O-Ring Boss/Adjustable SAE O-Ring Boss (ORB) Adapter | -08 Male SAE O-Ring Boss x -08 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 2220-8-8S Danfoss
Price: 15.05 USD
Availability: InStock

$15.05 - $15.05

$15.05

$15.05 - $15.05

$15.05

Aeroquip® by Danfoss
SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket)

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 2220-8-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male O-Ring Boss, 1/2in Male O-Ring Boss
Material(s):	Steel

Construction:
Buna-N O-Rings are standard.


Steel Part Number	Thread T1	A	B	D Hole	E Hex	F Hex
2220-4-4S	7/16-20	1.37"	0.38"	0.17"	0.56"	0.56"
2220-6-6S	9/16-18	1.49"	0.39"	0.30"	0.69"	0.69"
2220-8-8S	3/4-16	1.75"	0.44"	0.39"	0.88"	0.88"
2220-10-10S	7/8-14	2.04	0.50"	0.48"	1.00"	1.00"
2220-12-12S	1-1/16-12	2.13"	0.59"	0.61"	1.25"	1.25"
2220-16-16S	1-5/16-12	2.36"	0.59"	0.84"	1.50"	1.50"
2220-20-20S	1-5/8-12	2.32"	0.59"	1.08"	1.88"	1.88"
2220-24-24S	1-7/8-12	2.48"	0.59"	1.32"	2.13"	2.13"
