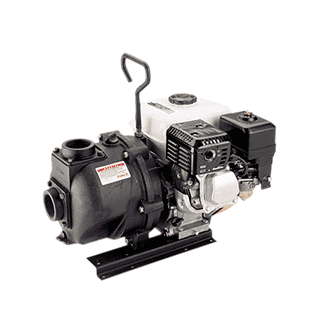

222PIH5E Banjo 2" 222 Series Cast Iron Pump with 5.5 HP Honda® Engine with Electric Start

222PIH5E by Banjo | Centrifugal Pumps | 2" 222 Series Cast Iron Pump with 5.5 HP Honda® Engine with Electric Start

Save $217.35 Save $217.35
$1,956.18
$1,956.18 - $1,956.18
$1,956.18
$1,738.83
$1,738.83 - $1,738.83
$1,738.83
Specifications for Variant SKU: 222PIH5E Banjo

Banjo Centrifugal Pumps - 2" 222 Series Cast Iron Pumps with Gas Engines & Replacement Parts

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: 2" Cast Iron Centrifugal Pump Instruction Manual PDF Video: N/A
Replacement Parts: Replacement Parts for 2" 222 Series Cast Iron Pumps with Gas Engines
Features:
  • Cast iron construction for rugged dependable service
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Replaceable inlet and outlet flanges
  • Dynamically balanced impeller
  • Pump end separated from engine
  • Heavy duty slinger seal on motor shaft
  • Large weep holes between pump end and engine
  • "V" Shaped for quicker priming
Notes:
    • CAUTION-WARNING: Please do not run pumps dry, restrict or reduce port sizes or dead head pumps. This could cause component failure to pump.
DO NOT USE WITH FLAMMABLE LIQUIDS
  • .
  • Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.

Part Number Description Horsepower Repair Kit Number FKM(viton type) Repair Kit Number Seal Kit Number FKM(viton type) Seal Kit Number
222 Series 2" Cast Iron Pumps with Gas Engines
222PIH5 2" Cast Iron Pump with 5.5 HP Honda® Engine 5.5 HP 15000 15000V 15999 15999V ---
222PIH6 2" Cast Iron Pump with 6.5 HP Honda® Engine 6.5 HP 15000 15000V 15999 15999V ---
222PIH5E 2" Cast Iron Pump with 5.5 HP Honda® Engine with Electric Start 5.5 HP 15000 15000V 15999 15999V (Made to Order)
222PI6PRO 2" Cast Iron Pump with 6.5 HP Briggs & Stratton® Engine Pro Series 6.5 HP 15000 15000V 15999 15999V ---
222 Series Cast Iron Pump Only for Gas Engines
222POI 2" Cast Iron Pump Only with Full Impeller N/A 15000 15000V 15999 15999V (Made to Order)

Replacement Parts for 222 Series Cast Iron Pumps with Gas Engines
Item Part Number Description Quantity Required
14 15702 Volute 1
15 15703 Rear Bracket 1
21 15712 Body 1
Not Shown 12099 7/16"-14 x 1.25" HHCS 1
Not Shown 15751 Bracket Shim 1
Not Shown 15752 Impeller Shim 1
Not Shown 15000 Repair Kit (Items 5, 8,11-12, 18-20, 12099, 15751 & 15752) 1
Not Shown 15000V FKM (viton type) Repair Kit 1
Not Shown 15999 Seal Kit (Items 5, 11-12, 18-20, 12099, 15751 & 15752) 1
Not Shown 15999V FKM (viton type) Seal Kit 1
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
