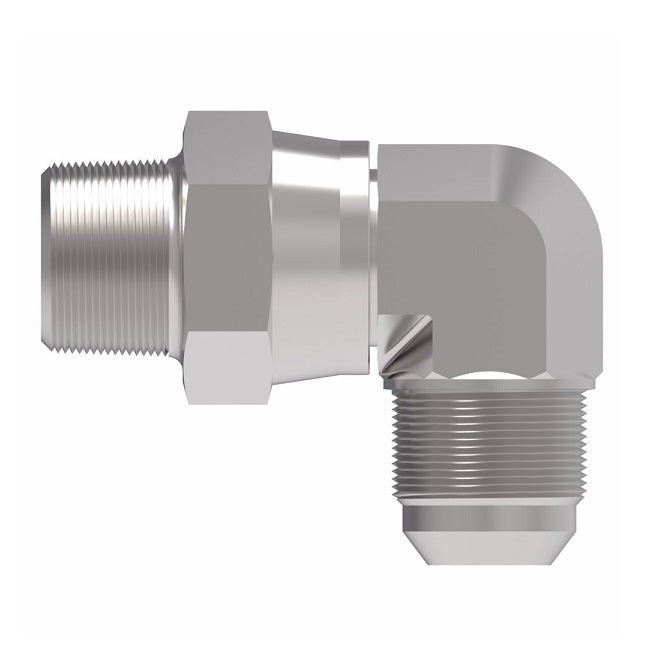

2249-6-8S Aeroquip by Danfoss | External Pipe Swivel/37° JIC Flare 90° Elbow Adapter | -06 Male NPTF Swivel x -08 Male 37° JIC Flare | Steel
2249-6-8S Aeroquip by Danfoss | External Pipe Swivel/37° JIC Flare 90° Elbow Adapter | -06 Male NPTF Swivel x -08 Male 37° JIC Flare | Steel
2249-6-8S Aeroquip by Danfoss | External Pipe Swivel/37° JIC Flare 90° Elbow Adapter | -06 Male NPTF Swivel x -08 Male 37° JIC Flare | Steel
2249-6-8S Aeroquip by Danfoss | External Pipe Swivel/37° JIC Flare 90° Elbow Adapter | -06 Male NPTF Swivel x -08 Male 37° JIC Flare | Steel

2249-6-8S Aeroquip by Danfoss | External Pipe Swivel/37° JIC Flare 90° Elbow Adapter | -06 Male NPTF Swivel x -08 Male 37° JIC Flare | Steel

$37.54 - $37.54
$37.54
$37.54 - $37.54
$37.54

Aeroquip® by Danfoss
External Pipe Swivel/37° JIC Flare Adapter
Male NPTF Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2249-6-8S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male NPTF, 1/2in Male JIC
Material(s): Steel
Special Properties: Swivel
Applications:
  • To be used with petroleum or water glycol fluids.
Note:
  • This adapter is not a rotating union or swivel joint. Care must be exercised to avoid misuse.
Part Number
Steel 		Tube O.D. Thread P Thread T A B
2249-4-6S 0.38" 1/4-18 9/16-18 1.60" 1.06"
2249-6-8S 0.50" 3/8-18 3/4-16 1.71" 1.22"
2249-8-10S 0.63" 1/2-14 7/8-14 2.00" 1.45"
2249-12-12S 0.75" 3/4-14 1-1/16-12 1.62" 1.66"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
