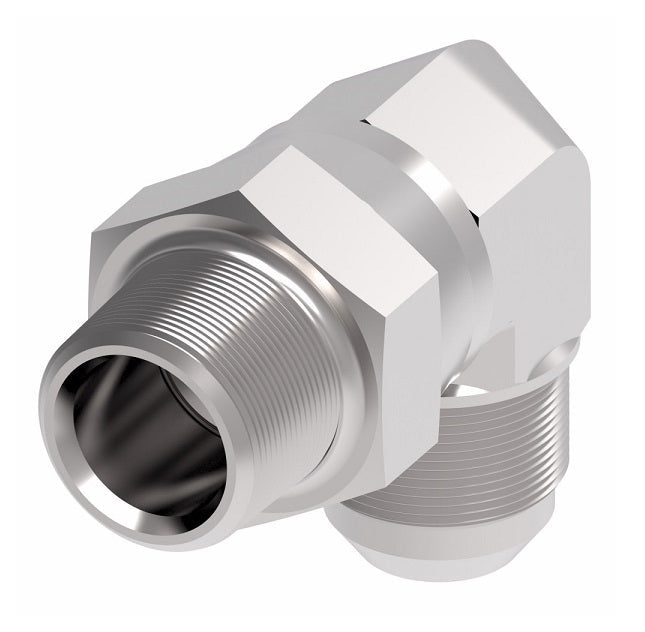

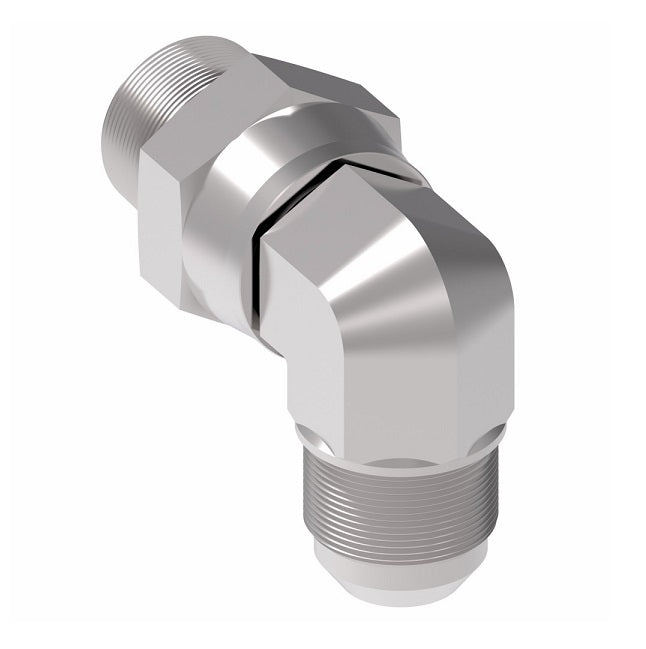

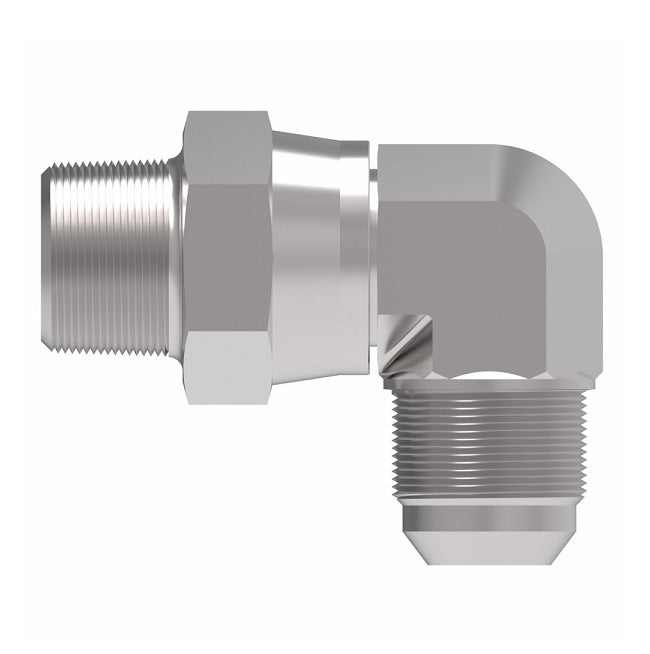

2249-8-10S Aeroquip by Danfoss | External Pipe Swivel/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF Swivel x -10 Male 37° JIC Flare | Steel

2249-8-10S Aeroquip by Danfoss | External Pipe Swivel/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF Swivel x -10 Male 37° JIC Flare | Steel

Name: 2249-8-10S Aeroquip by Danfoss | External Pipe Swivel/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF Swivel x -10 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2249-8-10S Danfoss
Price: 71.26 USD
Availability: InStock

$71.26 - $71.26

$71.26

$71.26 - $71.26

$71.26

Aeroquip® by Danfoss
External Pipe Swivel/37° JIC Flare Adapter
Male NPTF Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2249-8-10S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Male NPTF, 5/8in Male JIC
Material(s):	Steel
Special Properties:	Swivel

Applications:
To be used with petroleum or water glycol fluids.
Note:
This adapter is not a rotating union or swivel joint. Care must be exercised to avoid misuse.


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B
2249-4-6S	0.38"	1/4-18	9/16-18	1.60"	1.06"
2249-6-8S	0.50"	3/8-18	3/4-16	1.71"	1.22"
2249-8-10S	0.63"	1/2-14	7/8-14	2.00"	1.45"
2249-12-12S	0.75"	3/4-14	1-1/16-12	1.62"	1.66"
