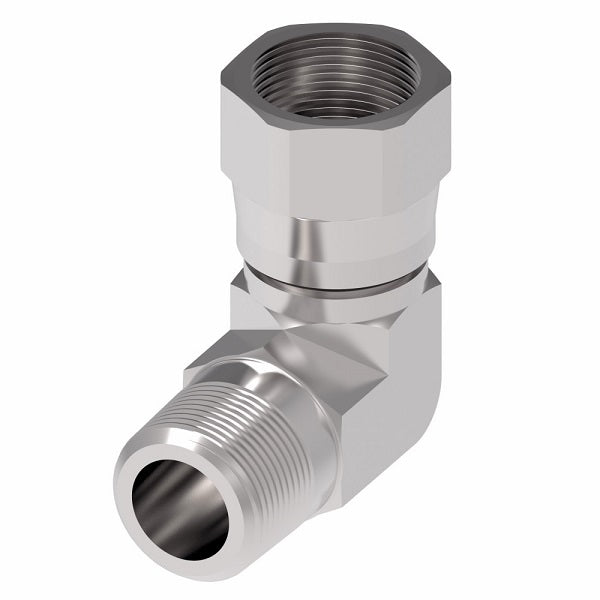

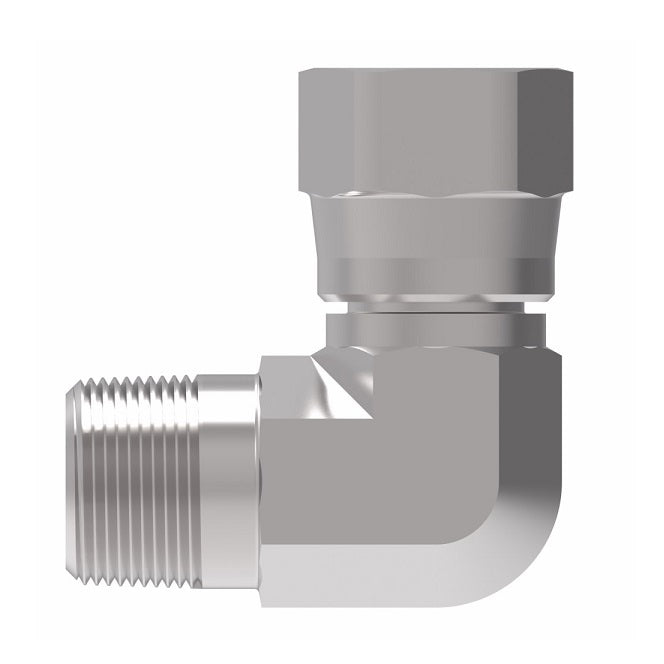

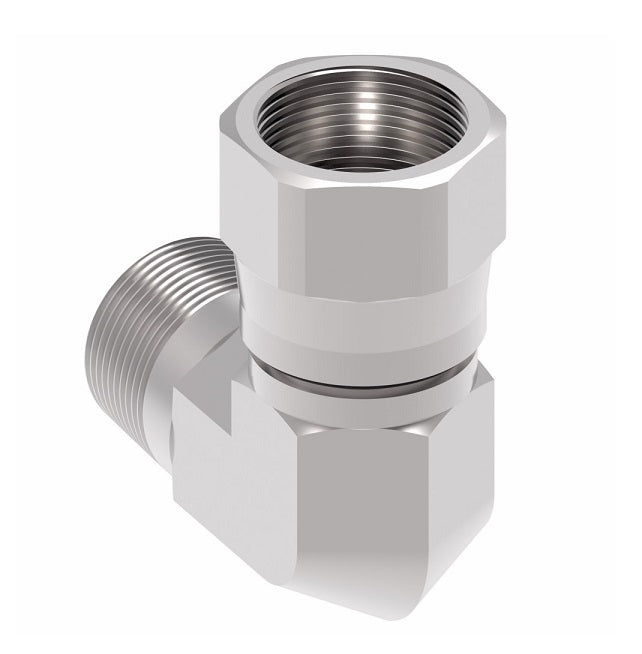

2250-2-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -02 Male NPTF x -05 Female 37° JIC Flare | Steel
2250-2-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -02 Male NPTF x -05 Female 37° JIC Flare | Steel
2250-2-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -02 Male NPTF x -05 Female 37° JIC Flare | Steel
2250-2-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -02 Male NPTF x -05 Female 37° JIC Flare | Steel

2250-2-5S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -02 Male NPTF x -05 Female 37° JIC Flare | Steel

$72.03 - $72.03
$72.03
$72.03 - $72.03
$72.03

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Swivel Adapter
Male NPTF x Female 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2250-2-5S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Male NPTF, 5/16in Female JIC
Material(s): Steel
Special Properties: Swivel
Part Number
Steel		 Tube O.D. Thread P Thread T A B
2250-2-4S 0.25" 1/8-27 7/16-20 0.78" 0.66"
2250-2-5S 0.31" 1/8-27 1/2-20 0.78" 0.68"
2250-4-4S - - - - -
2250-4-6S 0.38" 1/4-18 9/16-18 1.09" 0.88"
2250-6-6S 0.38" 3/8-18 9/16-18 1.22" 0.85"
2250-6-8S 0.50" 3/8-18 3/4-16 1.22" 0.96"
2250-8-8S 0.50" 1/2-14 3/4-16 1.47" 1.00"
2250-8-10S 0.63" 1/2-14 7/8-14 1.47" 1.12"
2250-12-8S 0.50" 3/4-14 3/4-16" 1.59" 1.17"
2250-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.19"
2250-12-14S 0.88" 3/4-14 1-3/16-12 1.69" 1.20"
2250-16-16S 1.00" 1-11-1/2 1-5/16-12 1.97" 1.41"
2250-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.38" 1.68"
2250-24-24S 1.50" 1-1/2-11-1/2 1-7/8-12 2.64" 1.86"
2250-32-32S - - - - -
