2250-8-8S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Male NPTF x -08 Female 37° JIC Flare | Steel

2250-8-8S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Male NPTF x -08 Female 37° JIC Flare | Steel

Name: 2250-8-8S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Male NPTF x -08 Female 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2250-8-8S Danfoss
Price: 14.79 USD
Availability: InStock

$14.79 - $14.79

$14.79

$14.79 - $14.79

$14.79

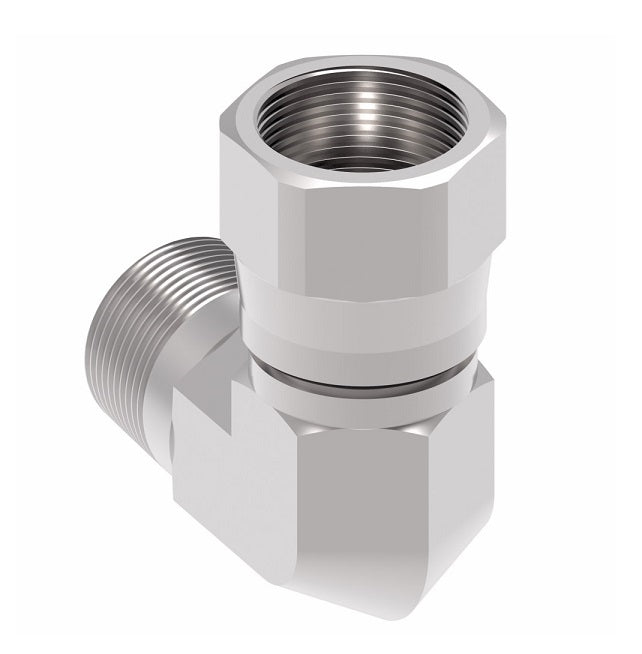

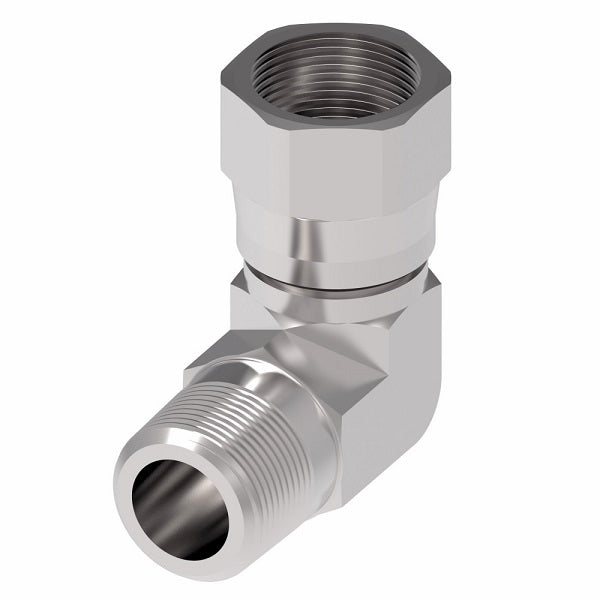

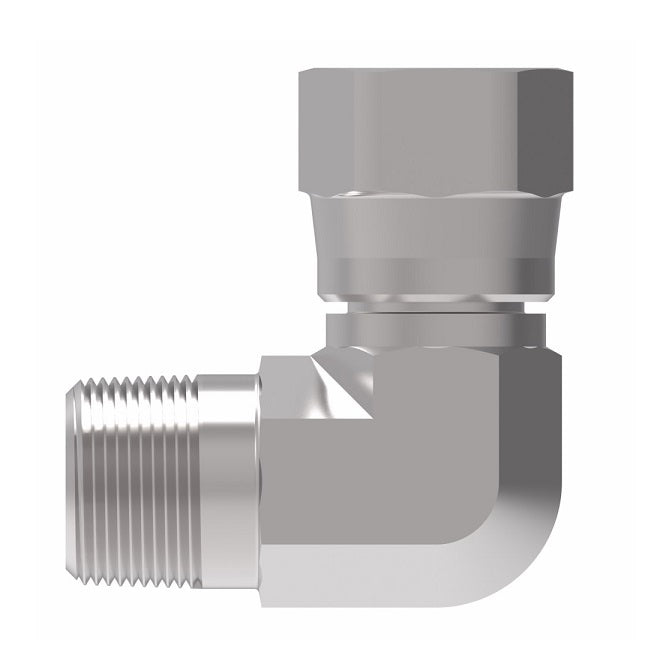

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Swivel Adapter
Male NPTF x Female 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 2250-8-8S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Male NPTF, 1/2in Female JIC
Material(s):	Steel
Special Properties:	Swivel


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B
2250-2-4S	0.25"	1/8-27	7/16-20	0.78"	0.66"
2250-2-5S	0.31"	1/8-27	1/2-20	0.78"	0.68"
2250-4-4S	-	-	-	-	-
2250-4-6S	0.38"	1/4-18	9/16-18	1.09"	0.88"
2250-6-6S	0.38"	3/8-18	9/16-18	1.22"	0.85"
2250-6-8S	0.50"	3/8-18	3/4-16	1.22"	0.96"
2250-8-8S	0.50"	1/2-14	3/4-16	1.47"	1.00"
2250-8-10S	0.63"	1/2-14	7/8-14	1.47"	1.12"
2250-12-8S	0.50"	3/4-14	3/4-16"	1.59"	1.17"
2250-12-12S	0.75"	3/4-14	1-1/16-12	1.59"	1.19"
2250-12-14S	0.88"	3/4-14	1-3/16-12	1.69"	1.20"
2250-16-16S	1.00"	1-11-1/2	1-5/16-12	1.97"	1.41"
2250-20-20S	1.25"	1-1/4-11-1/2	1-5/8-12	2.38"	1.68"
2250-24-24S	1.50"	1-1/2-11-1/2	1-7/8-12	2.64"	1.86"
2250-32-32S	-	-	-	-	-
