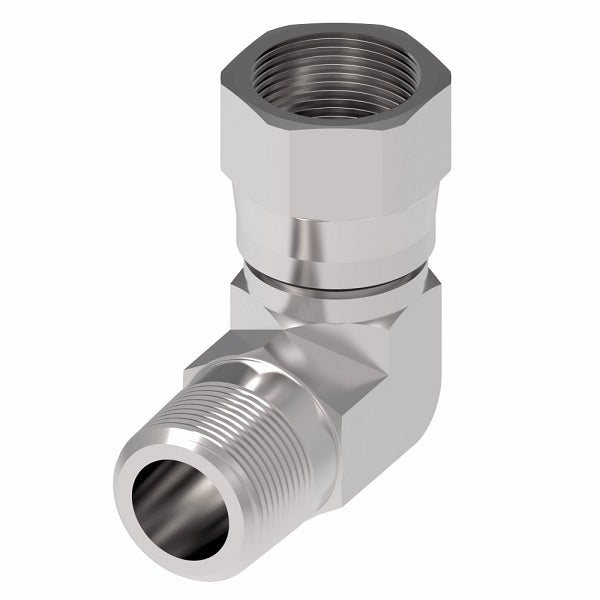

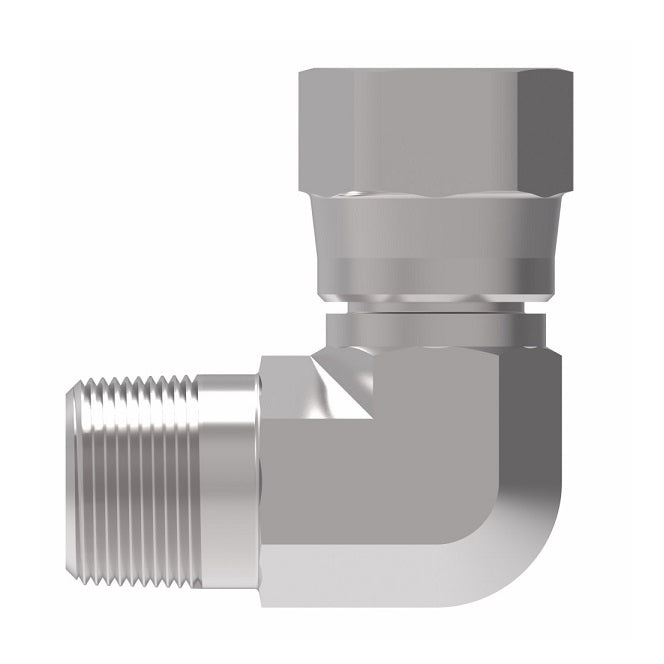

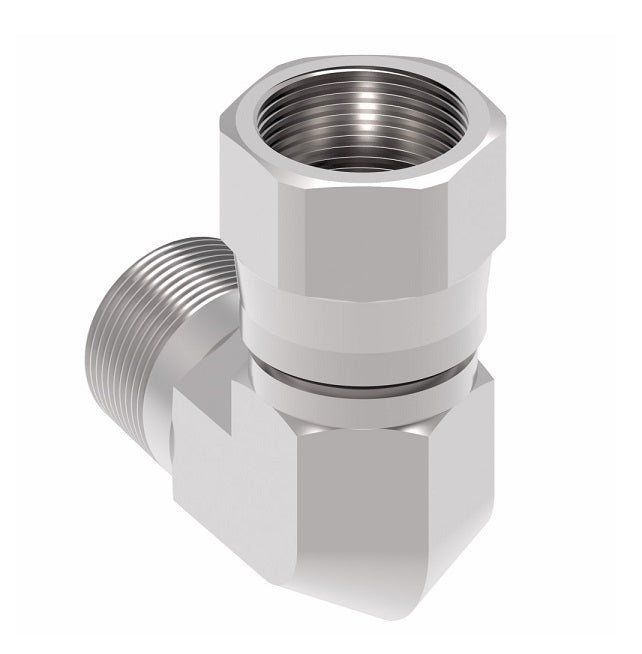

2250-6-8S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -06 Male NPTF x -08 Female 37° JIC Flare | Steel
2250-6-8S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -06 Male NPTF x -08 Female 37° JIC Flare | Steel
2250-6-8S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -06 Male NPTF x -08 Female 37° JIC Flare | Steel
2250-6-8S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -06 Male NPTF x -08 Female 37° JIC Flare | Steel

2250-6-8S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -06 Male NPTF x -08 Female 37° JIC Flare | Steel

$16.72 - $16.72
$16.72
$16.72 - $16.72
$16.72

Aeroquip® by Danfoss
External Pipe/37° JIC Flare Swivel Adapter
Male NPTF x Female 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2250-6-8S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male NPTF, 1/2in Female JIC
Material(s): Steel
Special Properties: Swivel
Part Number
Steel		 Tube O.D. Thread P Thread T A B
2250-2-4S 0.25" 1/8-27 7/16-20 0.78" 0.66"
2250-2-5S 0.31" 1/8-27 1/2-20 0.78" 0.68"
2250-4-4S - - - - -
2250-4-6S 0.38" 1/4-18 9/16-18 1.09" 0.88"
2250-6-6S 0.38" 3/8-18 9/16-18 1.22" 0.85"
2250-6-8S 0.50" 3/8-18 3/4-16 1.22" 0.96"
2250-8-8S 0.50" 1/2-14 3/4-16 1.47" 1.00"
2250-8-10S 0.63" 1/2-14 7/8-14 1.47" 1.12"
2250-12-8S 0.50" 3/4-14 3/4-16" 1.59" 1.17"
2250-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.19"
2250-12-14S 0.88" 3/4-14 1-3/16-12 1.69" 1.20"
2250-16-16S 1.00" 1-11-1/2 1-5/16-12 1.97" 1.41"
2250-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.38" 1.68"
2250-24-24S 1.50" 1-1/2-11-1/2 1-7/8-12 2.64" 1.86"
2250-32-32S - - - - -
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
