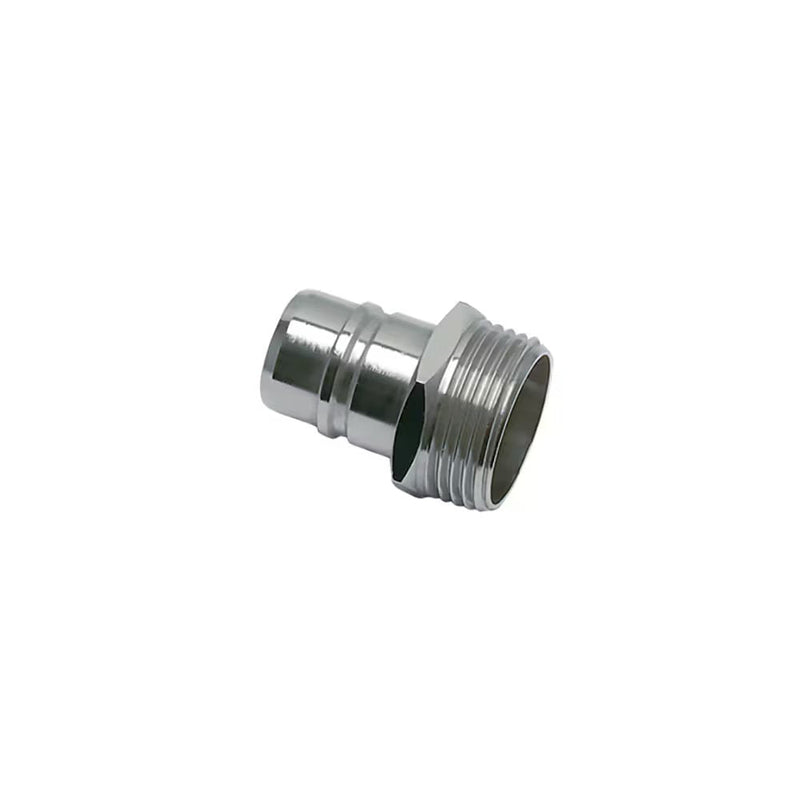

2294 18 34 by Parker | Legris Coupler Quick Disconnect | 1" Male BSPP Thread | 34 mm Hex | 46 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $4.68

$173.15

$173.15 - $173.15

$173.15

$168.47

$168.47 - $168.47

$168.47

by Parker Hannifin
Maxi Series:2294 Plug without valve, Male BSPP Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 2294 18 34 Parker \| 5 \|
Series:	Maxi Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Maxi Series	The robust maxi series is designed for high flow applications and ensure water and compressed air handling. Designed for transmission of water and fluids Very High flow capabilities Ideal for rincing applications
Working Pressure:	up to 20 bar
Material:	Coupling: Nickel Plated Brass Plug: Nickel Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	8.500 NI/min. (inlet pressure 6 bar, pressure drop 0.6 bar)


Part Number	Diameter Nominal (DN)	C	E	F	L
2294 18 27	19 mm	3/4"	10.5 mm	27 mm	42.5 mm
2294 18 34	19 mm	1"	13 mm	34 mm	46 mm

Probe without Shut-off
