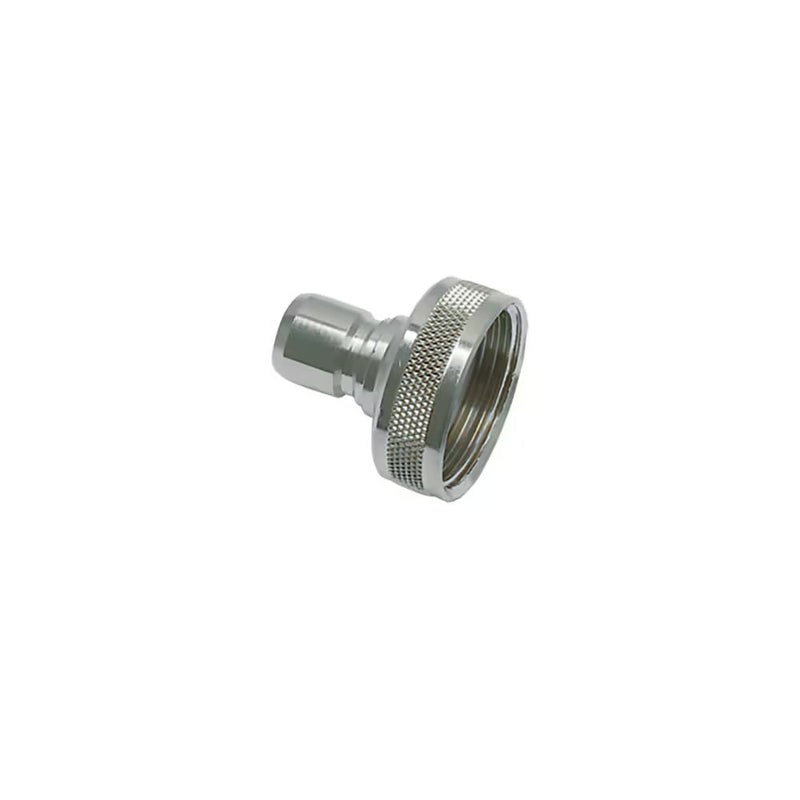

2296 12 34 by Parker | Legris Plug Quick Disconnect | 1" Female BSPP Thread | 36 mm Hex | 36.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $7.10

$261.77

$261.77 - $261.77

$261.77

$254.67

$254.67 - $254.67

$254.67

by Parker Hannifin
Midi Series:2296 Plug without valve, Female BSPP Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 2296 12 34 Parker \| 10 \|
Series:	Midi Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Midi Series	Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users. Designed for transmission of water and fluids High flow capabilities Maximum energy efficiency
Working Pressure:	up to 20 bar
Material:	Coupling: Nickel Plated Brass Plug: Nickel Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	2.200 NI/min. (inlet pressure 6 bar, pressure drop 0.6 bar)


Part Number	Diameter Nominal (DN)	C	E	G	L
2296 12 27	12 mm	3/4"	11 mm	30 mm	38 mm
2296 12 34	12 mm	3/4"	11 mm	36 mm	36.5 mm
