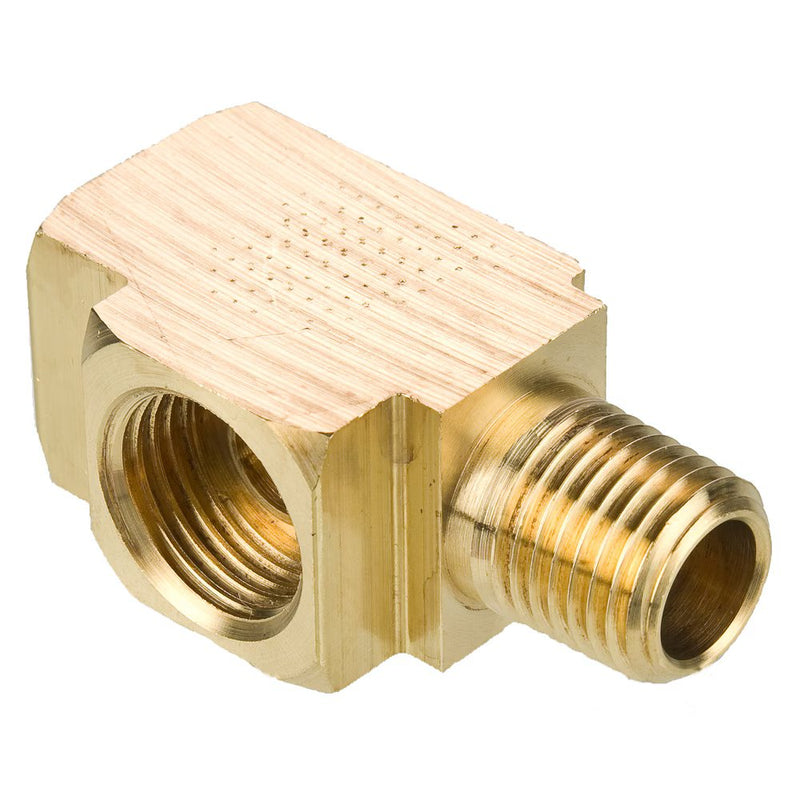

251IFHD-3-2 by Parker | Inverted Flare Fittings | 3/16" Inverted Flare x 1/8" Male Pipe Thread | 1.25" Length | Tee | Brass | Pack of 25

251IFHD-3-2 by Parker | Inverted Flare Fittings | 3/16" Inverted Flare x 1/8" Male Pipe Thread | 1.25" Length | Tee | Brass | Pack of 25

Save $256.27 Save $256.27
$640.68
$640.68 - $640.68
$640.68
$384.41
$384.41 - $384.41
$384.41

by Parker Hannifin
Inverted Flared Fittings:Male Run Tee 251IFHD

Package Quantity: 25 Units

Specifications for Variant SKU: 251IFHD-3-2 Parker | 25 |
Series: 251IFHD Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Fuel Grade, UL Listed
Product Features:
  • All brass construction
  • UL listed for flammable liquid and gas
  • Meets functional requirements of SAE J512
  • Steel nut for economy
Markets:
  • Air Conditioning
  • Marine
  • Mobile
  • Engines
Applications:
  • Refrigerant Lines
  • Brake Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Aluminum
  • Welded Steel Hydraulic Tubing
Part Number Tube Size Pipe Thread Straight Thread M M1 N Flow Diameter (D)
251IFHD-3-2 3/16" 1/8" 3/8"-24 .39" .53" .72" .125"
251IFHD-5-2 5/16" 1/8" 1/2"-20 .45" .62" .85" .220"
251IFHD-6-4 3/8" 1/4" 5/8"-18 .56" .75" 1.08" .282"
