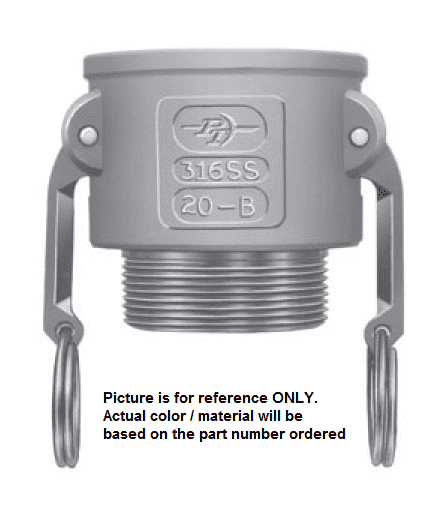

60382500 (25BFH) by PT-Coupling | 2-1/2" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Aluminum/HBS | Buna-N Seal

60382500 (25BFH) by PT-Coupling | 2-1/2" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Aluminum/HBS | Buna-N Seal

Save $7.30 Save $7.30
$65.69
$65.69 - $65.69
$65.69
$58.39
$58.39 - $58.39
$58.39
Specifications for Variant SKU: 60382500 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 2-1/2in Female Cam & Groove, 2-1/2in Male NST
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Part BFH - Coupler x Male Fire Hose (NH) Thread - Aluminum/HBS
Features & Applications:
  • HBS cam arms are made of 300 series Stainless Steel.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Comes Standard with Buna N cam gasket.
  • Made in the USA
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Item # Coupler
Size		 Male Fire Hose
Thread (NH)
Size		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Outside
Diameter
(B)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
25BFH 60382500 2-1/2" 2-1/2" 8.03" 3.63" 4.43" 2.18" 2.38" 200 PSI
30BFH 60383000 3" 3" 9.56" 3.82" 5.46" 2.27" 2.88" 200 PSI
30X25BFH 60383025 3" 2-1/2" 9.56" 3.82" 5.46" 2.27" 2.88" 200 PSI
40BFH 60384000 4" 4" 10.66" 4.00" 6.56" 2.34" 3.60" 150 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
