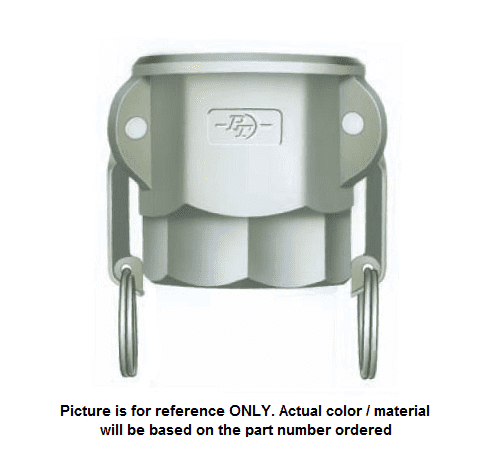

64622504 (25DWS) by PT-Coupling | 2-1/2" Coupler x Socket Weld for Tube | 316 Stainless Steel

64622504 (25DWS) by PT-Coupling | 2-1/2" Coupler x Socket Weld for Tube | 316 Stainless Steel

Save $22.71 Save $22.71
$204.39
$204.39 - $204.39
$204.39
$181.68
$181.68 - $181.68
$181.68
Specifications for Variant SKU: 64622504 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2-1/2in Female Cam & Groove, 2-1/2in Weld End
Material(s): 316 Stainless Steel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Weld Fittings - Part DWS - Coupler x Socket Weld For Tube - 316 Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Socket
Depth
(E)		 Socket
Diameter
(F)		 Max. Allowable
Working Press.
(PSI)*
07DWS 64620703 3/4" 4.51" 2.11" 0.88" 2.06" 0.50" 0.77" 250 PSI
12DWS 64621202 1-1/4" 6.86" 3.26" 1.25" 2.70" 0.50" 1.27" 250 PSI
15DWS 64621501 1-1/2" 7.16" 3.56" 1.50" 2.81" 0.50" 1.52" 250 PSI
20DWS 64622001 2" 7.54" 3.94" 1.88" 3.10" 0.70" 2.02" 250 PSI
25DWS 64622504 2-1/2" 8.03" 4.43" 2.38" 3.40" 0.70" 2.52" 200 PSI
30DWS 64623005 3" 9.56" 5.46" 2.88" 3.50" 0.70" 3.02" 200 PSI
40DWS 64624001 4" 10.66" 6.56" 3.60" 3.90" 0.70" 4.03" 150 PSI
50DWS 64625003 5" 11.67" 7.57" 4.50" 4.20" 0.90" 5.03" 75 PSI
60DWS 64626003 6" 16.26" 10.16" 5.50" 4.54" 0.90" 6.03" 75 PSI
80DWS 64628002 8" 18.23" 12.13" 7.50" 4.80" 0.90" 8.04" 50 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
