2600-0406X100 Kuriyama Kuri Tec 2600 Series 85 Shore "A" Ether-Based Clear Food Grade Polyurethane Tubing - 1/4" ID - 3/8" OD - 100ft

2600-0406X100 Kuri-Tec by Kuriyama | 2600 Series | 85 Shore "A" Ether-Based Clear Food Grade Tubing | 1/4" ID | 3/8" OD | Polyurethane | 100ft Length

Save $7.68 Save $7.68
$81.48
$81.48 - $81.48
$81.48
$73.80
$73.80 - $73.80
$73.80

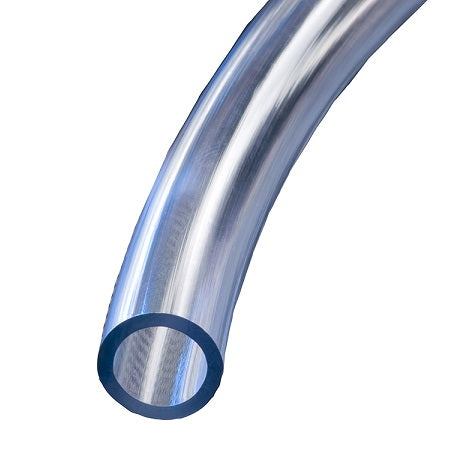

Kuriyama Kuri Tec® Series 2600 85 Shore "A" Ether-Based Clear Food Grade Polyurethane Tubing Clear polyurethane ether-based food grade tubing for transfer of air, fluids and abrasive slurries.

Package Quantity: 100 FT

Specifications for Variant SKU: 2600-0406X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: 2600 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.25in
Outer Diameter: 0.25in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable NSF Requirements, RoHS Compliant

SPECIFICATIONS

Application: Transfer of air and fluids under severe conditions. Feed and return lines, Abrasive slurry transfer, Granular transfer lines, Robotics control lines, Insulating sleeves, Lubrication lines, Metering pumps. SAE Rating: N/A
Other Ratings: N/A Tube: 85 Shore "A" Durometer ether-based polyurethane tubing in transparent Blue tint. Blue tint 2600 material conforms to FDA(07) requirements. Also in compliance with RoHS(15) requirements.
Reinforcement: N/A Cover: N/A
Temperature Range: 40 deg. F (-40 deg. C) to +175 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(07), RoHS(15)
Other Features:
  • Abrasion and cut resistance.
  • Good flex fatigue and resilience characteristics.
  • Excellent resistance to ozone, solvents and fuel.
  • Good resistance to hydrolysis and algae.
  • Slight Blue tint allows see-through convenience.
  • Complies with RMA's Class A designation for high oil resistance.
  • Silicone-free.
  • One-piece lengths.
  • Note: Not recommended for transfer of brake fluids.
Part Number Nominal ID Nominal OD Nominal Wall Thickness Working Pressure Standard Length Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coil/Box
2600-0204X100 1/8" 3.2mm 1/4" 6.4mm 1/16" 1.6mm 100 PSI 75 PSI 100ft 2 lbs.
2600-0305X100 3/16" 4.8mm 5/16" 7.9mm 1/16" 1.6mm 75 PSI 50 PSI 100ft 3 lbs.
2600-0406X100 1/4" 6.4mm 3/8" 9.5mm 1/16" 1.6mm 60 PSI 45 PSI 100ft 3.5 lbs.
2600-0507X100 5/16" 7.9mm 7/16" 11.1mm 1/16" 1.6mm 50 PSI 35 PSI 100ft 4 lbs.
2600-0608X100 3/8" 9.5mm 1/2" 12.7mm 1/16" 1.6mm 45 PSI 30 PSI 100ft 5 lbs.
2600-0812X100 1/2" 12.7mm 3/4" 19.1mm 1/8" 3.2mm 60 PSI 45 PSI 100ft 13 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: When exceptional oil and fuel resistance is needed, we suggest use of Series 2810 ester-based tubing - call for details.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
