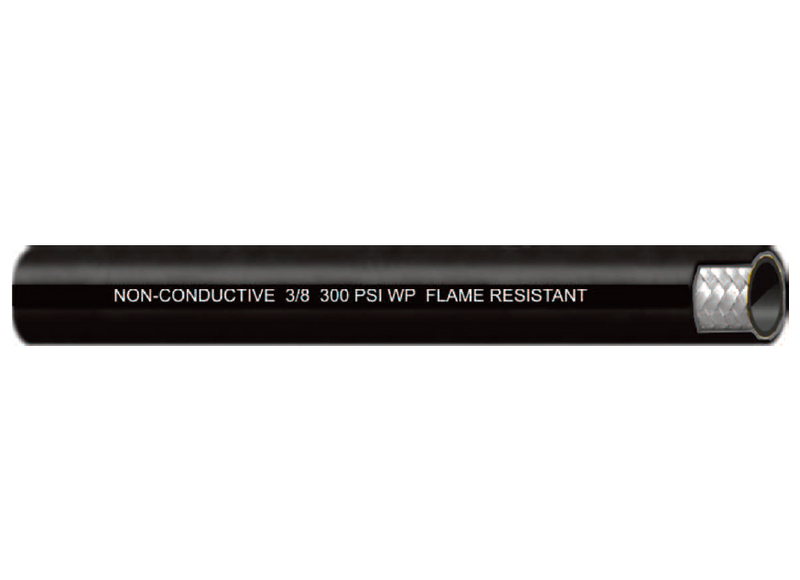

3/8" 025H Couplamatic Rubber Covered Push-on Hose - One Fiber Braid - Black - 3/8" ID - 500ft

3/8" 025H by Couplamatic | Rubber Covered Push-on Hose | One Fiber Braid | Black | 3/8" ID | 500ft

$896.30 - $896.30

$896.30

$923.33

$923.33 - $923.33

$923.33

Couplamatic Systems Inc.
One Fiber Braid - 025H Rubber Covered Push-on Hose

Package Quantity: 500 FT

Quantity

Specifications for Variant SKU: 3/8" 025H Couplamatic \| 500 \|
Series:	025H Series
Hose Color(s):	Black
Internal Diameter:	0.375in
Outer Diameter:	0.64in
Cover Construction:	Rubber

Applications:	Low Pressure	SAE Rating:	N/A
Cover:	Black Oil Resistant Rubber	Reinforcement:	One Fiber Braid
Temperature:	-40 to +190F (-40 to +88C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Coil Footage
1/4" 025H	1/4"	0.500"	300 lbs.	1,200 lbs.	2.5"	9 lbs.	500ft
3/8" 025H	3/8"	0.640"	300 lbs.	1,200 lbs.	3"	11 lbs.	500ft
1/2" 025H	1/2"	0.750"	300 lbs.	1,200 lbs.	5"	13 lbs.	500ft
5/8" 025H	5/8"	0.910"	300 lbs.	1,200 lbs.	6"	19 lbs.	500ft
3/4" 025H	3/4"	1.031"	300 lbs.	1,200 lbs.	7"	21 lbs.	500ft

*Cut lengths available. 100ft minimum*

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
