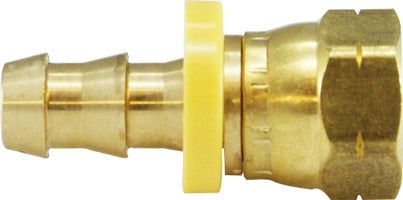

30258 (30-258) Midland Push On Hose Barb - 45° SAE Flare Female Swivel - 7/8-14 UNF Thread - 5/8" Hose ID x 5/8" Female 45° Flare - Brass

30258 by Midland | Push On Hose Barb | 45° SAE Flare Swivel | 7/8-14 UNF Thread | 5/8" Hose ID x 5/8" Female 45° Flare | Brass

Save $1.17 Save $1.17
$10.55
$10.55 - $10.55
$10.55
$9.38
$9.38 - $9.38
$9.38

Midland Industries
Brass Fitting - Push On Barb Fitting - 45° SAE Flare Female Swivel

Inventory @ Manufacturers Warehouse: 250 Units
Specifications for Variant SKU: 30258 Midland
Shape (Orientation): Straight
Ends Configuration: 5/8in Push-On Hose Barb, 5/8in Female SAE 45 Flare
Material(s): Brass

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29P06 129PO14 30882 728 P990-H 29AEPO 307 284 100S-4 KA-NS HSF 684 934
Part Number Hose ID x Female 45° Flare UNF Thread A B Hex Approx. Weight
(Lbs.)
30250
(30-250) 		1/4" x 1/4" 7/16-20 1.54" 0.87" 0.56" 0.04
30251
(30-251) 		1/4" x 5/16" 1/2-20 1.57" 0.87" 0.62" 0.04
30253
(30-253) 		1/4" x 3/8" 5/8-18 1.63" 0.87" 0.75" 0.06
30254
(30-254) 		5/16" x 5/16" 1/2-20 1.58" 0.87" 0.68" 0.06
30260
(30-260) 		5/16" x 3/8" 5/8-18 1.63" 0.87" 0.75" 0.08
30252
(30-252) 		3/8" x 3/8" 5/8-18 1.73" 0.97" 0.75" 0.10
30257
(30-257) 		3/8" x 1/2" 3/4-16 1.85" 0.87" 0.87" 0.10
30261
(30-261) 		1/2" x 3/8" 5/8-18 1.92" 1.05" 0.75" 0.10
30255
(30-255) 		1/2" x 1/2" 3/4-16 1.77" 0.97" 0.87" 0.12
30258
(30-258) 		5/8" x 5/8" 7/8-14 2.35" 1.45" 1.00" 0.14
30259
(30-259) 		3/4" x 3/4" 1-1/16-14 2.42" 1.45" 1.25" 0.22
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
