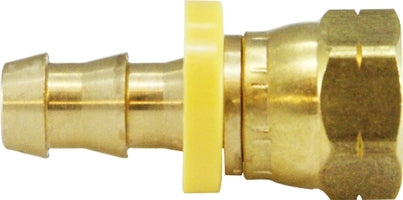

30259 (30-259) Midland Push On Hose Barb - 45° SAE Flare Female Swivel - 1-1/16-14 UNF Thread - 3/4" Hose ID x 3/4" Female 45° Flare - Brass

30259 by Midland | Push On Hose Barb | 45° SAE Flare Swivel | 1-1/16-14 UNF Thread | 3/4" Hose ID x 3/4" Female 45° Flare | Brass

Save $4.51

$11.27

$11.27 - $11.27

$11.27

$6.76

$6.76 - $6.76

$6.76

Midland Industries
Brass Fitting - Push On Barb Fitting - 45° SAE Flare Female Swivel

Inventory @ Manufacturers Warehouse: 2184 Units

Specifications for Variant SKU: 30259 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Push-On Hose Barb, 3/4in Female SAE 45 Flare
Material(s):	Brass

SPECIFICATIONS

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29P06	129PO14	30882	728	P990-H	29AEPO	307	284	100S-4	KA-NS	HSF	684	934


Part Number	Hose ID x Female 45° Flare	UNF Thread	A	B	Hex	Approx. Weight (Lbs.)
30250 (30-250)	1/4" x 1/4"	7/16-20	1.54"	0.87"	0.56"	0.04
30251 (30-251)	1/4" x 5/16"	1/2-20	1.57"	0.87"	0.62"	0.04
30253 (30-253)	1/4" x 3/8"	5/8-18	1.63"	0.87"	0.75"	0.06
30254 (30-254)	5/16" x 5/16"	1/2-20	1.58"	0.87"	0.68"	0.06
30260 (30-260)	5/16" x 3/8"	5/8-18	1.63"	0.87"	0.75"	0.08
30252 (30-252)	3/8" x 3/8"	5/8-18	1.73"	0.97"	0.75"	0.10
30257 (30-257)	3/8" x 1/2"	3/4-16	1.85"	0.87"	0.87"	0.10
30261 (30-261)	1/2" x 3/8"	5/8-18	1.92"	1.05"	0.75"	0.10
30255 (30-255)	1/2" x 1/2"	3/4-16	1.77"	0.97"	0.87"	0.12
30258 (30-258)	5/8" x 5/8"	7/8-14	2.35"	1.45"	1.00"	0.14
30259 (30-259)	3/4" x 3/4"	1-1/16-14	2.42"	1.45"	1.25"	0.22
