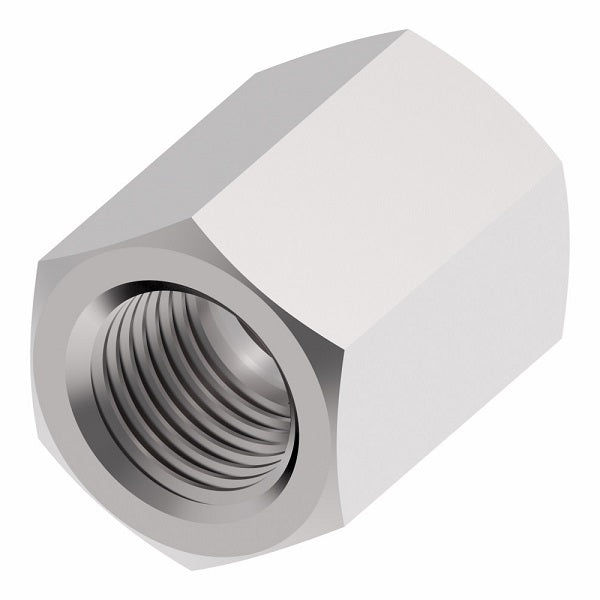

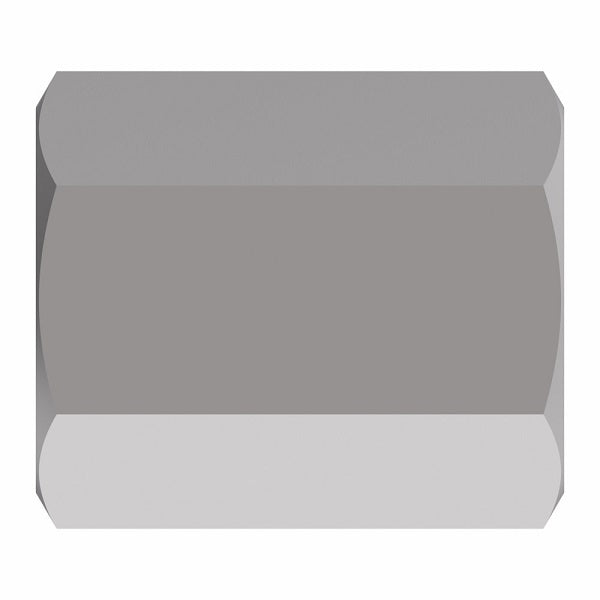

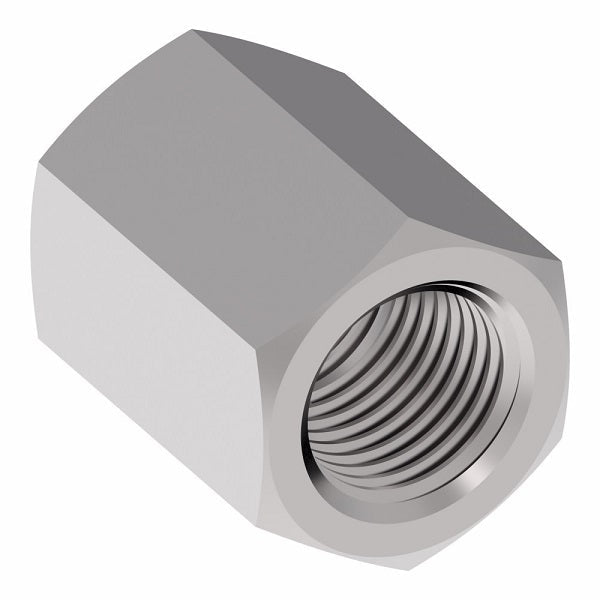

302X3 by Danfoss | Inverted Flare Union Adapter | 3/16" Female SAE Inverted Flare x 3/16" Female SAE Inverted Flare | Brass

302X3 by Danfoss | Inverted Flare Union Adapter | 3/16" Female SAE Inverted Flare x 3/16" Female SAE Inverted Flare | Brass Pack of 10

$15.20 - $15.20

$15.20

$15.20 - $15.20

$15.20

Aeroquip® by Danfoss
Inverted Flare Union Adapter
Female SAE Inverted Flare x Female SAE Inverted Flare
Straight

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 302X3-BG Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	3/16in Female Inverted Flare, 3/16in Female Inverted Flare, Some Ends Match
Material(s):	Brass

Overview:
Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
Very low cost and reusable. Seats and threads are internal and protected. Compact, excellent vibration life. Short nut affords very close tube bends.
Used With:
Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
Ref. SAE No. 040101 Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"	1"
Thread Size	5/16-28	3/8-24	7/16-24	1/2-20	5/8-18	11/16-18	3/4-18	7/8-18	1-1/16-16	1-3/16-16	1-5/16-16


Brass Part Number	Tube O.D.	Hex C	D	L
302X2	1/8"	13/32"	0.078"	0.59"
302X3	3/16"	15/32"	0.125"	0.62"
302X4	1/4"	17/32"	0.188"	0.62"
302X5	5/16"	19/32"	0.219"	0.70"
302X6	3/8"	3/4"	0.281"	0.80"
302X8	1/2"	29/32"	0.406"	0.91"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
