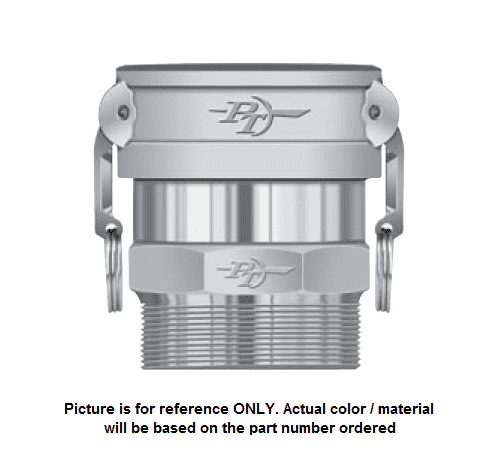

64193000 (30ASV) by PT-Coupling | 3" Swivel Coupler x 3" Male NPT | 316 Stainless Steel | Viton Seal

64193000 (30ASV) by PT-Coupling | 3" Swivel Coupler x 3" Male NPT | 316 Stainless Steel | Viton Seal

Save $56.04 Save $56.04
$504.37
$504.37 - $504.37
$504.37
$448.33
$448.33 - $448.33
$448.33
Specifications for Variant SKU: 64193000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 3in Male NPT
Material(s): 316 Stainless Steel
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part BSV - 360° Swivel - Coupler x Male NPT Thread - 316 Stainless Steel
Features & Applications:
  • Ball bearing swivel action.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 316 Stainless Steel
Viton®
Item #		 316 Stainless Steel
Buna
Item #		 Coupler
Size		 Male NPT
Thread Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
20BSV 64192000 - 2" 2" 7.54" 3.94" 3.20" 2.15" 1.88" 250 PSI
25BSV 64192500 - 2-1/2" 2-1/2" 8.03" 4.43" 3.63" 2.18" 2.38" 200 PSI
30BSV 64193000 - 3" 3" 9.56" 5.46" 3.82" 2.27" 2.88" 200 PSI
40BSV 64194000 - 4" 4" 10.66" 6.56" 4.00" 2.34" 3.60" 150 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
