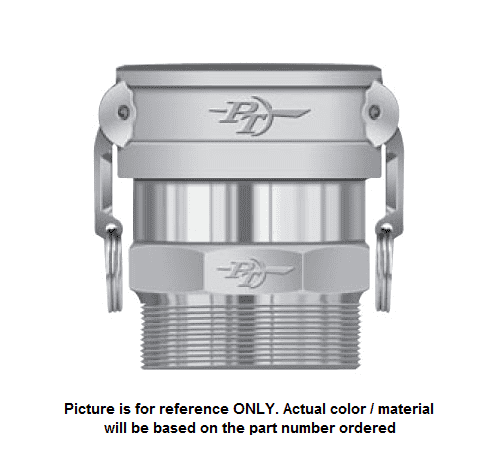

60193000 (30ASV) by PT-Coupling | 3" Swivel Coupler x 3" Male NPT | Aluminum | Viton Seal

60193000 (30ASV) by PT-Coupling | 3" Swivel Coupler x 3" Male NPT | Aluminum | Viton Seal

Save $19.78 Save $19.78
$178.02
$178.02 - $178.02
$178.02
$158.24
$158.24 - $158.24
$158.24
Specifications for Variant SKU: 60193000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 3in Male NPT
Material(s): Aluminum
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part BSV - 360° Swivel - Coupler x Male NPT Thread - Aluminum
Features & Applications:
  • Ball bearing swivel action.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Aluminum
Viton®
Item #		 Aluminum
Buna
Item #		 Coupler
Size		 Male NPT
Thread Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
15BSV 60191500 - 1-1/2" 1-1/2" 7.16" 3.56" 2.93" 1.88" 1.50" 250 PSI
20BSV 60192000 - 2" 2" 7.54" 3.94" 3.20" 2.15" 1.88" 250 PSI
25BSV 60192500 - 2-1/2" 2-1/2" 8.03" 4.43" 3.63" 2.18" 2.38" 200 PSI
30BSV 60193000 - 3" 3" 9.56" 5.46" 3.82" 2.27" 2.88" 200 PSI
40BSV 60194000 - 4" 4" 10.66" 6.56" 4.00" 2.34" 3.60" 150 PSI
60BSV 60196000 - 6" 6" 16.26" 10.16" 4.52" 2.62" 5.60" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
