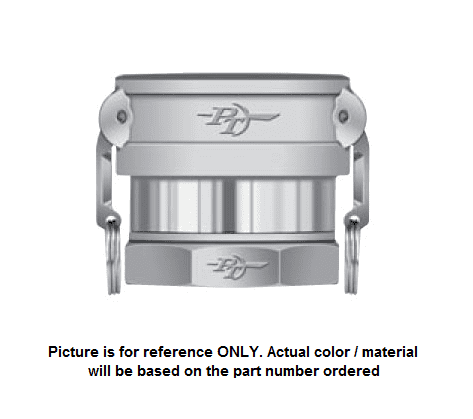

64213000 (30DSV) by PT-Coupling | 3" Swivel Coupler x 3" Female NPT | 316 Stainless Steel | Viton Seal

64213000 (30DSV) by PT-Coupling | 3" Swivel Coupler x 3" Female NPT | 316 Stainless Steel | Viton Seal

Save $48.61 Save $48.61
$437.49
$437.49 - $437.49
$437.49
$388.88
$388.88 - $388.88
$388.88
Specifications for Variant SKU: 64213000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 3in Female Cam & Groove, 3in Female NPT
Material(s): 316 Stainless Steel
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part DSV - 360° Swivel - Coupler x Female NPT Thread - 316 Stainless Steel
Features & Applications:
  • Ball bearing swivel action.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 316 Stainless Steel
Viton®
Item #		 316 Stainless Steel
Buna
Item #		 Coupler
Size		 Female NPT
Thread Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
15DSV 64211500 - 1-1/2" 1-1/2" 7.16" 3.56" 2.80" 1.50" 250 PSI
20DSV 64212000 - 2" 2" 7.54" 3.94" 3.10" 1.88" 250 PSI
25DSV 64212500 - 2-1/2" 2-1/2" 8.03" 4.43" 3.40" 2.38" 200 PSI
30DSV 64213000 - 3" 3" 9.56" 5.46" 3.50" 2.88" 200 PSI
40DSV 64214000 - 4" 4" 10.66" 6.56" 3.90" 3.60" 150 PSI
50DSV 64215000 - 5" 5" 11.67" 7.57" 4.1" 4.5" 75 PSI
60DSV 64216000 - 6" 6" 16.26" 10.16" 4.40" 5.50" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
